Yale Assure Lock SL Key Free Touchscreen Deadbolt with iM1 HomeKit Module

"Hey Siri, Unlock My Front Door."

Secure your home with a HomeKit-enabled deadbolt or lever from Yale Real Living. Simply plug-in the included Yale iM1 Network Module into the back of your Yale Assure Lock for seamless HomeKit integration. You'll be able to lock and unlock your door from your iPhone, iPad or iPod Touch. The Assure Lock with iM1 Network Module responds to Siri allowing you to control the lock with simple Siri voice commands such as "Hey Siri, unlock my front door."

Create unique pin codes for friends and family and remove codes whenever you need to using the Yale Secure app. See current lock status, lock and unlock (from anywhere when used with an Apple TV 4th generation or later), view access history and customize lock settings.

Yale Assure Locks are Grade 2 certified and backed Yale, one of the world's best known brands in the lock industry that's been securing homes since 1846, ensuring that your home and family is always safe. Choose from a key free touchscreen, keyed touchscreen, keyed push button or the new Assure Lock SL for a slim and modern look.

Create Unique Pin Codes

Unlock the door by entering your 4-8 digit pin code and create unique pin codes for friends, family and neighbors. Delete pin codes whenever you need to with just a few steps. The Yale Assure Lock can hold up to 250 codes when used with an integrator (25 with no iM1 Network Module).

Install Within Minutes

The Assure Lock is simple to install on standard doors and replaces your existing deadbolt in minutes with just a screwdriver. The lock even has voice guidance in three languages to walk you through set up and customizing settings.

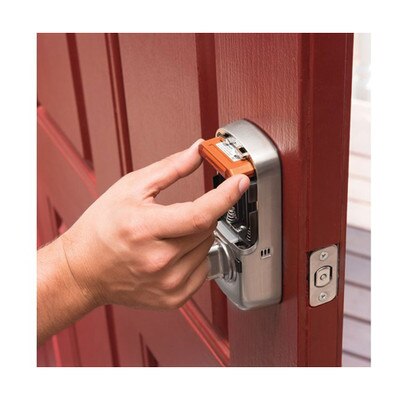

Installing a Yale Network Module can be done in minutes by simply removing the battery cover and batteries, snapping the module into place and enrolling the module by following the below steps:

• Enter master pin code and tap the gear
• Tap 7 and tap the gear
• Tap 1 and tap the gear

Additional Features of the Yale Assure Lock

• Weather Protection Gasket
• One Touch Locking
• Backlit Numbers That Won't Wear Off
• Privacy Button
• Tamper Resistant Battery Cover

Installs On Standard Doors In Minutes

• Replaces existing deadbolt with just a screwdriver
• Fits on doors 1 3/4" to 2 1/4" thick
• Backset 2 3/4" or 2 3/4"
• Face Bore Hole: 2 1/8"
• Edge Bore Hole: 1"
• Adjustable latch

Product Information

• Create up to 250 entry codes for access by keypad (when used with Network Module – 25 without)
• Lifetime limited warranty for finish and mechanical, one year electronics
• Certified ANSI/BHMA A156.36, Grade 2
• Z-Wave and/or Bluetooth compatible locks also available, sold separately

In The Box:

• SL Touchscreen Deadbolt
• iM1 HomeKit Module
• 4 x AA Batteries
• Mounting Hardware
• Manual

NOTE: HomeKit integration requires an iPhone, iPad or iPod touch with iOS 10.3 or later to support the Yale Secure App and the Apple Home App. Controlling this HomeKit-enabled accessory automatically and away from home requires an Apple TV with tvOS 10.2 or later, or an iPad with iOS 10.3 or later set up as a home hub.
