Yale Wi-Fi Assure Lock SL Key-Free Touchscreen Deadbolt

$219.00 to $299.00
SKU: YAYRD256CBAx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

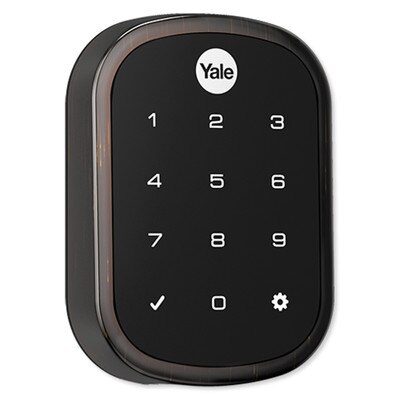

Upgrade your home security with the Yale SL Key Free Touchscreen Deadbolt Assure Lock with Wi-Fi. This smart lock features a sleek touchscreen keypad for key-free entry and is Connected by August, allowing you to lock/unlock, share access and see who comes and goes all using your August app. For ultimate convenience, your Assure Lock will unlock automatically as you approach the door and it will relock once the door is closed. You can also lock, unlock or check current status with voice assistants including Amazon Alexa, Google Assistant or Siri. The lock features a backlit key free touchscreen keypad so even when you don't have your phone, you can unlock your door without the hassle of keys. It's extremely easy to use and installs in minutes with just a screwdriver on standard doors (1-3/4" to 2-1/4" thick).

  • Replaces your existing deadbolt with a touchscreen keypad lock so you can lock and unlock your door without the hassle of keys
  • Lock, unlock, share access, customize lock settings and see who comes and goes from anywhere using the August app
  • Unlocks automatically as you approach the door when you have your phone
  • Enter your entry code on the backlit keypad if you don't have your phone
  • Lock, unlock and check lock status with voice assistants including Amazon Alexa, Google Assistant and Siri
  • Optional integration with Autoslide AutoSwing to add automatic door opening/closing when accessing your Wi-Fi compatible Yale lock

In The Box:

  • SL Key Free Touchscreen Deadbolt Assure Lock
  • Connected by August Module
  • August Connect Wi-Fi Bridge
  • DoorSense Sensor
  • (4) AA Batteries
  • Mounting Hardware
  • Instruction Manual

NOTES: Requires a 802.11 b/g/n (2.4 GHz) Wi-Fi network connection and a Bluetooth Smart Ready Phone with the August Connect app (iOS or Android). The DoorSense Sensor must be installed.

Tech Specs

Yale SL Key Free Touchscreen Deadbolt Assure Lock with Wi-Fi

  • Part Number:
    • YRD256-CBA-0BP: Oil-Rubbed Bronze
    • YRD256-CBA-605: Bright Brass
    • YRD256-CBA-619: Satin Nickel
    • YRD256-CBA-BSP: Black Suede
    • YRD256-CBA-P05: Lifetime Brass
  • UPC:
    • YRD256-CBA-0BP (Oil-Rubbed Bronze): 081023044646
    • YRD256-CBA-605 (Bright Brass): 081023044653
    • YRD256-CBA-619 (Satin Nickel): 081023044639
    • YRD256-CBA-BSP (Black Suede): 081023068109
    • YRD256-CBA-P05 (Lifetime Brass): 081023092869
  • Wireless Protocol: Wi-Fi – includes plug-in Connected by August Module
  • Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
  • Keypad Type: Touchscreen
  • Grade: Grade 2: A156.36 ANSI/BHMA
  • Handing: Self handing (Please hand while in unlocked position)
  • Batteries: 4 AA Alkaline Batteries (Included)
  • Face Bore: 2-1/8"
  • Edge Bore: 1"
  • Backset: 2-3/8" or 2-3/4"
  • Latch: Adjustable
  • Latch Front: RC (Round Corner)
  • Door Thickness: 1-3/4" to 2-1/4", 1-3/8" requires special thin door gasket
  • Strike: 1-1/8" x 2-3/4"
  • Strike Front: RC (Round Corner)
  • Thumbturn: Yes
  • Cylinder: N/A
  • Keyway 1: N/A
  • Number of Keys: 0
  • Weight: 4.5 pounds
  • Lock Dimensions:
    • Exterior: 11/16 x 2-9/16 x 3-9/16 inches

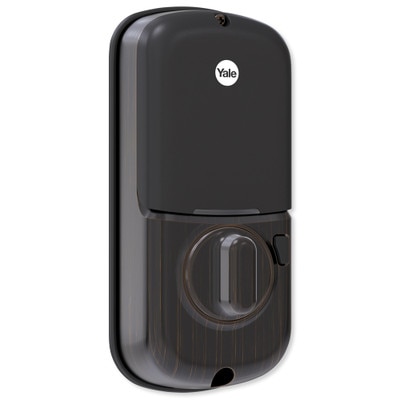

    • Interior: 3-3/4 x 3-1/8 x 6-3/4 inches
  • Approvals: ANSI/BHMA Grade 2 – BHMA Certified
  • Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical

August Connect Wi-Fi Bridge

  • Standards: Bluetooth Specification v4.0 (Bluetooth Smart), 2.4GHz 802.11 (b/g/n) Wi-Fi
  • Power Requirement: 100-240V – 50-60Hz 0.1A – Standard North American Power Outlet
  • Dimensions: 2.36(H) x 2.36(W) x 1.54(L) inches
  • Weight: 2.9 ounces
  • Warranty: 1-Year Limited
