Yale Smart Cabinet Lock, Bluetooth & Wi-Fi

$122.89
SKU: YAYRCB490CB1WSP

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Yale Smart Cabinet Lock mounts inside most cabinets and drawers to safely store sensitive items or important or important documents. This speciality lock is designed to limit access to a single specific cabinet or drawer to prevent children or intruders from obtaining items like medicine, alcohol, important documents, or other personal items. The Lock is controlled through the Yale Access mobile app to lock/unlock, share access via Bluetooth ekeys, and see the device's activity history. The Lock can be configured to automatically lock or unlock when a valid connected device leaves or enters effective Bluetooth range. Additionally, the Cabinet Lock can connect to your Internet and Wi-Fi compatible smart home system via the Yale Connect Wi-Fi Bridge, enabling remote control and voice control with Amazon Alexa, Google Assistant, and Apple Siri.

  • Completely hidden from view, the Smart Cabinet Lock seamlessly integrates into your home
  • Secure a single cabinet or drawer containing your medicine, cleaning supplies, alcohol, documents and more with the Yale Smart Cabinet Lock.
  • Easily installs in your cabinet or drawer with the included hardware
  • Emergency escape button with LED on the backside of the lock prevents children from locking themselves in a cabinet or drawer
  • Use the free Yale Access app to see access history, enable auto-lock and know when your cabinet or drawer is open or closed.
  • Connect to the Yale Connect Wi-Fi Bridge to enable remote control and voice commands

Why You Would Use This Product:

If you have a designated cabinet or drawer that contains items that require an additional level of protection or personalized access, the Smart Cabinet Lock is the perfect, stealthy solution. As mentioned previously, it is an excellent option to prevent children from endangering themselves or keep special items out of reach for anyone but yourself or other authorized users.

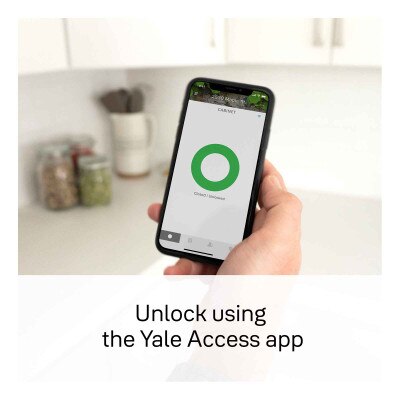

Yale Access App

The Yale Access mobile app grants you remote access to your Wi-Fi compatible smart lock. With the Yale Access app, you can use your smartphone or mobile device as a virtual ekey to unlock/lock your door when you enter or leave close proximity to it. Multiple ekey can be shared at once and can even be configured to allow access at certain days and times. Other features include activity monitoring to receive real time notifications of device usage and review past usage, and reviewing real time lock status.

In The Box:

  • Smart Lock
  • Battery
  • Double Door Plate
  • Mounting Bracket
  • 2 x Lock Post
  • Long Lock Post
  • Lock Post Guide
  • 2 x M4x12 Screw
  • 4 x M3x10 Screw
  • 5 x Mounting Tape
  • Template
  • Yale Connect Wi-Fi Bridge (YRCB-490-CB1-WSP model only)

NOTE:

  • Lip of the selected cabinet cannot exceed 1" H or 1.25" D.
  • Yale Connect Wi-Fi Bridge included with YRCB-490-CB1-WSP model. Also sold separately.
  • Requires compatible Yale Access or August Applications, Wi-Fi connection, 110/220V Outlet, and Yale Connect Wi-Fi Bridge.

Tech Specs

  • Part Number: YRCB-490-CB1-WSP
  • UPC: 081023068031
  • Lock Compatibility: Kitchen cabinets, bathroom cabinets, and desk drawers.
  • Requirements: Free Yale Access App for iOS or Android.
  • Communication Frequency:
    • Bluetooth version: 4.2
    • Wi-Fi Frequency: 2.4GHz
  • Wireless Technology: Bluetooth directly or via Bluetooth and Wi-Fi if a Yale Connect Wi-Fi Bridge is paired.
  • Two-factor Security: Password and additional verification via an email or phone number.
  • Encryption: Bluetooth Low Energy (BLE) technology encryption, AES, and TLS encryptions.
  • Operating Temperature: -22 to 140°F (-5.55 to 60°C)
  • Product Weight: 1 lb (453g)
  • Battery Type: Single 3V Lithium CR2
  • Battery Life: Av. 1 Year
  • Dimensions:
    • Lock body: 1.87 H x 1.61 W x 2 D inches (47.6 H x 41.3 W x 50.8 D mm)
    • Assembled: 2.29 H x 1.59 W x 2 D inches (58.4 H x 40.6 W x 50.8 D mm)
  • Warranty: 1 Year Limited

Product Docs
