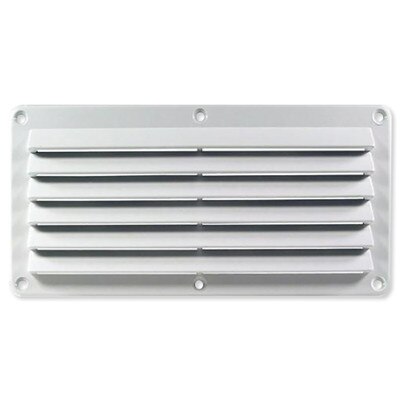

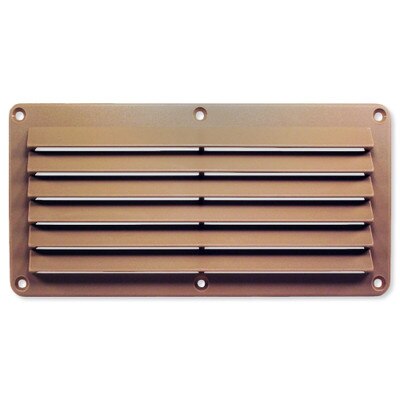

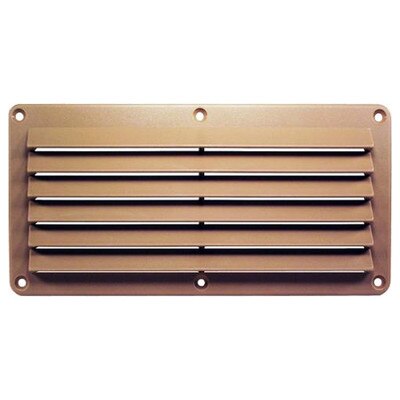

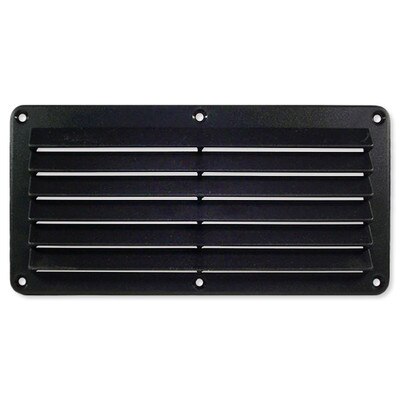

Cool Components Grill for 4x10" Openings, Plastic

$13.00
Item # CCGR410x

Select an option for availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This grill matches the HiFlo Fan Units and is perfect for using in conjunction with the fan units for added airflow or for simply increasing natural airflow.

Features

  • Easily and Economically Add Passive Cooling to a Cabinet, Closet, or Other Area
  • Surface Mounted for Easy Installation
  • Includes Painted Screws

Installation

  1. Determine the location for the grill ensuring that there will not be any obstructions inside the cabinet.
  2. Cut a maximum hole size of 8.5" W x 3.5" H (21.6cm x 8.9cm) opening in the cabinet – using a jig saw would be most appropriate.
  3. Using the grill as a template, mark the 6 screw holes and pre-drill those with a small drill bit (smaller than the screws).
  4. Screw grill to the cabinet.

In The Box:

  • 4x10 Grill
  • Painted screws
  • Part Number: GR-410
  • Material: ABS Plastic – Smooth
  • Mounting Type: Surface Mount (mounts on top of surface)
  • Grill Face Dimensions: 10.25(W) x 5.0(H) inches (26.0 x 12.7 cm)
  • Vent Hole Size: 8.5(W) x 3.5(H) inches (21.6 x 8.9 cm)
  • Warranty: 1 Year
