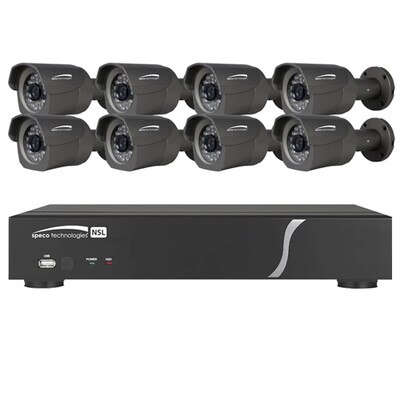

Speco Zip Kit: 8-Channel NVR with 8 Bullet Cameras
Product Description
8 Ch. Plug & Play NVR and IP Camera Kit:
- 1 x 8-channel NVR with 8-channel built-in PoE, 2TB
- 8 x Full HD 1080p outdoor IR bullet cameras
NVR Features:
- EZ Set-Up Wizards: one click wizard guides you to set up essentials of the system in a logical and easy to understand sequence.
- – Date/Time – Recording method – Recording video quality – Network – Port forwarding
- EZ Camera: quickly discovers and installs IP cameras
- EZ Search: quickly search events from thumbnails
- EZ Copy: auto copy what you are playing onto a USB flash drive
- Built-in PoE IEEE 802.3af
- Video Out: 1 HDMI, 1 VGA
- Plug and play feature with Speco's IP cameras
- Dual network ports for isolating IP camera network and remote network traffic
- Network video recorder with free Speco DDNS server
- Full HD (1920 x 1080) recording and playback
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Network accessible via SpecoTech Multi-Client Software, SecureGuard CMS and Speco Player Mobile Viewer
- PC and MAC compatible
- 3 year warranty
Camera:
- Full HD 1080p
- 3.6mm fixed lens
- Real-time video up to 30fps
- PoE IEEE 802.3af
- Dual streaming
- Weather/vandal resistant
- 2 year warranty
In The Box:
- 1 x 8-Channel NVR (N8NSL2TB)
- 8 x IP Bullet Cameras (O2VLB2)
Available for sale only in the U.S.
Tech Specs
Bullet Cameras (O2VLB2)
- Image Sensor: Progressive scan 1/2.9" CMOS, 2.0MP
- Maximum Resolution: 1920x1080
- Minimum Illumination: F1.6, Color: 0.01 lux, BW: 0 lux
- S/N Ratio: 50dB
- IR LEDs: Yes
- IR Range: 65 feet (depending on scene reflection)
- White Balance: Auto, Manual
- Exposure Control: Yes
- Digital Slow Shutter: Yes
- Backlight: BLC/HLC
- Day/Night: IR-cut filter
- DNR: 2D
Video
- Main Resolution: 1920x1080 / 1280x720 @ 30fps
- Compression: H.264 (HP/BP), MJPEG
- Bitrate Control: VBR, CBR
- Multiple Streaming: 3 streams
External Terminal
- Ethernet: 10/100 Mbps
- Power: DC jack
Network
- Protocols: IPv4/IPv6, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, DNS, Bonjour
- DDNS Support: Speco DDNS (free of charge)
- Security: User ID and Password protection, IP address filtering, HTTPS, digest authentication, user access log
- User Access: 20 users max.; Number of users may vary depending on resolution
System
- PoE: Standard (IEEE 802.3af)
- Analytics: Motion detection (4 regions), Tamper protection
- Alarm Triggers: Analytics
- Alarm Events: Email, record, snapshot
- Video Buffer: Configurable pre-record and post-record
- Image Settings: Privacy mask
Client
- Web Browser Support: Windows (Internet Explorer 8 and up, Chrome, Firefox)
Operating / Physical
- Power Supply: PoE, 12VDC (power supply not included)
- Power Consumption: 6W
- Operating Temperature: -20°F to 140°F (-28°C to 60°C)
- Operating Humidity: Less than 95 percent RH
- Dimensions: 6.1(L) x 2.6(W) x 2.8(H) inches
- Weight: 1.37 pounds
- Certifications: FCC, RoHS
Network Video Recorder (N8NSL2TB)
- Power Source: 48VDC, 1.2A
- Operating Temperature: 41° to 104°F (5 to 40°C)
- Storage Temperature: 14° to 122°F (-10 to 50°C)
- Weight: 4 pounds
- Dimensions: 11.7(W) x 2.0(H) x 8.25(D) inches
- Warranty: 3 Years
Video Input
- Max. IP Channels: 8
- Resolution: Max. 1920 x 1080
Video Output
- HDMI: 1 HDMI (1280 x 720, 1920 x 1080)
- VGA: 1 VGA (1280 x 720, 1920 x 1080)
Audio
- IP Camera Inputs (Network): 8
- Local Output (RCA): 1
- Codec: G.711
Recording
- Compression: H.264 (baseline, main and high profile)
- Resolution:
- 1080p: 240fps
- 720p: 240fps
- Recording Mode: Continuous / Motion / Sensor / Schedule / Manual / Continuous + Motion / Continuous + Sensor
- Pre-Recording: Max. 20 minutes
- Post-Recording: Max. 60 seconds
Playback
- Search: EZSearch, Date/Time, Event, Archive, Log
- Multi-Decoding: 1, 4, 8
- Playback Speed: x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup
- Media: USB Drive, External HDD, Network
- File Format: BMP, AVI, Proprietary Format
- Large Backup: Yes (max. 24 hours)
Storage
- Capacity of 1 HDD: 2TB
- Internal HDDs: 1
- e-SATA: No
- Front USB: 1
- Rear USB: 1
User
- I/F Input: Method IR, Mouse, Keyboard Controller
Event
- Sensor In:
- IP Camera (Network): 8
- Local Input (Terminal Block): None
- Local Alarm Output (Terminal Block): None
- Motion Detection: Yes, from IP camera
Network
- LAN (IP Camera, Auto Connection): 8 (802.3af PoE)
- WAN (IP Camera, Remote Access): 10/100Base-T
- Protocols: TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP
- Max. Throughput: 20Mbps
Network Access
- Mobile Viewer: iPad / iPhone / Android
- PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari
- PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS
- MAC Client: Speco Client for MAC and SecureGuard CMS
- Remote Setup and Upgrade: Yes
Features
- Digital Deterrent: Default + up to 8 audio files
- Digital Zoom: Yes
- DLS (Daylight Savings): Yes
- S.M.A.R.T: Yes
- Internal Beep: Yes
- Multi-Language: Yes
- Dynamic DNS: Yes (free Speco DDNS)
- Email Notification: Yes
- NTP (Network Time Protocol): Yes
