2GIG eSeries Wireless Enhanced Thin Door/Window Contact

$19.00
SKU: LN2GIGDW10E345

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

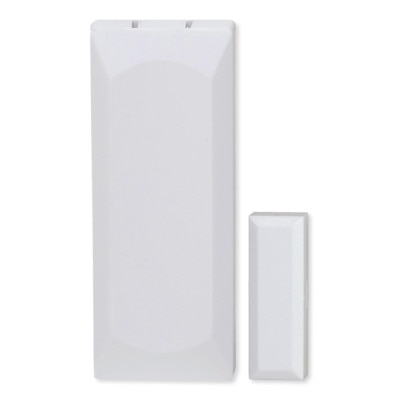

The 2GIG eSeries Wireless Enhanced Thin Door/Window Contact is perfect for monitoring open/close objects with narrow gaps. The sensor is only 3/4" wide, allowing it to fit in smaller and tighter spaces than most other contact sensors. The device consists of a sensor and magnet that mount onto the selected open/close object and the objects frame. When the magnet is moved away from or closer to the sensor, the sensor will transmit an alert to a connected 2GIG Security Panel to inform you of the change in status. The sensor has an external input that accepts N/C dry contact devices for additional security monitoring applications and is also equipped with a cover tamper for additional security.

  • 3/4" wide Rare earth magnet contact sensor for narrow applications
  • Fully supervised for constant security monitoring
  • Encrypted protocol for enhanced security
  • Supports internal and external contacts
  • Can be used for 2 zones of protection
  • Communicates with 2GIG and Honeywell devices via 345 MHz frequencies
  • ETL Listed

Why You Would Use This Product:

The 2GIG eSeries Wireless Enhanced Thin Door/Window Contact offers fast installation and reliable connection to compatible 345 MHZ security systems. Its minimal design helps it fit into smaller spaces where most other contact sensors cannot fit. This allows for greater security coverage across your property by providing more installation options.

In The Box:

  • Door/Window Sensor
  • Magnet
  • 2 x Screws
  • 3M Tape
  • 12" Wire Lead
  • 2 x CR2032 Batteries

NOTE: Requires connection to a 2GIG wireless system, such as a 2GIG EDGE, Wireless Keypad or other 345 MHz wireless-enabled system.

Tech Specs

  • Part Number: 2GIG-DW10E-345
  • UPC: 093863144134
  • Wireless Signal Range: 350 feet (106.7 meters), open air, with 2GIG Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 36,000 uV/m at 3m
  • External Input Sampling Current: 20 uA
  • External Input: Accepts N/C dry contact devices
  • Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
  • Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
  • Magnet Dimensions: 1.3 (L) x 0.435 (W) x 0.312 (H) inches (3.3 x 1.1 x 0.79 cm) typical
  • Magnet Type: Rare earth
  • Sensor Dimensions: 2.59 x 1.03 x 0.49 inches (6.58 x 2.62 x 1.24 cm)
  • Weight: 1.1 ounces (31.2 g), including battery and magnet
  • Housing Material: ABS plastic
  • Color: White
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: Two Panasonic CR2032 or equivalent Lithium batteries (installed with pull tab)
  • Included Accessories: Two Phillips flat-head screws
  • Warranty: 2-Year Limited

Product Docs
