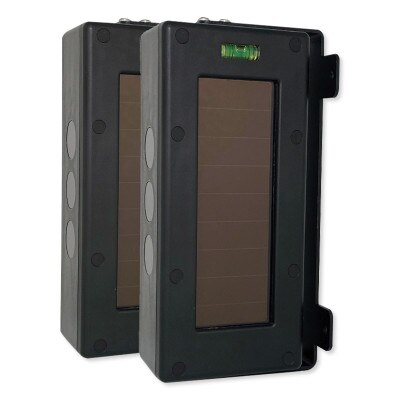

Dakota Alert Solar Break Beam Transmitter

The Dakota Alert Solar Break Beam Transmitter is a pair of solar powered wireless infrared break beam sensors that report to a paired Dakota Alert 4000 series receiver when a subject moves between the sensors, interrupting the beam. The infrared sensors can be mounted up to 300 feet apart from each other and are capable of sending a signal to a paired DCR-4000 receiver up to a mile away anytime someone passes between the sensors. The break beam sensors are powered by lithium ion batteries (included) that are recharged through the solar panels during the day to ensure nighttime operation and eliminate worry for low or depleted batteries. Because the unit is self powered there is no need to run wires for power. Installation time can be as little as a few minutes.

• Dual infrared beam sensors detect and report movement that interrupts IR beam
• Sensors can be placed up to 300 feet away from each other
• Sends trigger notifications to a paired 4000-series sensor up to 1 mile away
• Solar panels conserve and recharge power for 24/7 operation
• Detection immunity to small animals and small non-human objects reduces false alarms

Why You Would Use This Product:

The Solar Break Beam Transmitter is a point to point sensor and will not be activated by any motion outside of the monitored beam. The sensors are not affected by small objects such as falling leaves or birds. The beam sensor is ideal for outdoor applications such as storage lots, lumber yards, car dealerships, etc. Multiple sensor pairs can be used to send a signal to one receiver if you wish to set up a complete perimeter surrounding your property.

In The Box:

• Break Beam Pair "A" and "B" (2 sensors)
• 8 x M4x10 Pan Head Screws with Flat Washers and Lock Washer
• 8 x M4x40 Pan Head Screws
• 8 x M4 Nut
• 4 x Metal Pipe Mounts
• 4 x Pipe Mount Rubber Adapters
• 2 x "C" Mounting Brackets
• User Guide

NOTE: Dakota Alert's various series of products are not cross-compatible. The 4000 series transmitters are not compatible with 3000 series or 2500 series receivers.
