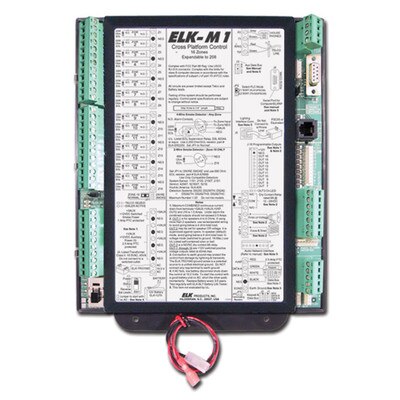

ELK M1G Gold Controller (Control Board Only)
Product Description
M1 Gold is commonly referred to as a Cross Platform control due to the fact that it can be networked with other industry standard systems. A 500+ word vocabulary pleasantly announces system status, configurable in any sequence, to alleviate user intimidation. The built-in voice dialer can call up to 8 phone numbers and alert owners of status changes; such as, critical temperature levels, water leaks, children arriving home from school, etc. Built-in telephone remote control allows you to control temperature settings, water heater, garage door, lighting, and sprinklers plus arming/disarming system and more; by simply picking up the phone any phone.
Optional Ethernet port allows for programming,monitoring, and control over LAN or Internet without the need for a dedicated "24/7" server. Integrators and Installers will value the flash memory firmware, RS-232 serial port, Ethernet connectivity option, and PC programming in English text.The LCD keypads have programmable task keys, a navigation key to access system status and automation tasks, plus large character display.
- Large zone capacity: 16 on-board zones expandable to 208
- Wireless capability: Up to 144 zones
- Two-way Listen-in interface
- RS-232 Serial Port to interface to computers and peripheral devices
- Time/Date stamped 512 event history log
- Menu driven, full text keypad programming – no manual required!
- Voice Announcement of alarms, zone descriptions, status, etc.
- 500+ Word/phrase Vocabulary
- Link up to 6 words/phrases per announcement
- 10 custom recordable word/phrases
- 13 On-board Outputs: 1 voice/siren, 1 siren driver, 1 form "C" relay and 10 low current (50mA) outputs
- Can be partitioned into 8 separate areas and account numbers
- User Codes: 199 (4 or 6 digit) with assignable authority levels
- Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation
NOTE: Part ELK-M1GCB does not include terminal blocks as this part is generally used as a replacement. If terminal blocks are needed, part ELK-M1BLOCKS must be ordered separately.
Tech Specs
- Flash Memory – Allows field updates to firmware electronically
- Supports 4-wire (any zone) and 2-wire (zone 16) smoke detectors
- Includes fire alarm verification routine
- Plug-in terminal blocks make service and pre-wires a snap!
- Hardware "watchdog" and nonvolatile EEPROM memory
- Supervised phone line, alarm output and aux. overcurrent
Communications
- True V.22 bis Modem for fast, reliable upload/download
- Optional Ethernet port for reporting operation / control or programming
- Built-in telephone remote control makes any phone a keypad
- Integrated Voice Dialer uses vocabulary or custom word/phrases
- Digital Communicator formats: SIA, Contact ID, 4+2 and Pager
- Installer Telephone (butt set) test feature
- Elk-RP PC software includes "conflict resolution" to easily highlight differences between control and PC
- Dial-up, ethernet or local from RS-232 port or house phone jack
- Automatic answering machine bypass
Automation & Integration
- Create lifestyle enhancing comfort, convenience and security
- Powerful "Whenever/And/Then" RULES Programming allows almost any imaginable operation.
- No need to chain rules together.
- Any single "Whenever" event can have one or more ANDs and THENs (conditions and commands).
- Rules utilize easy to understand text based references
- Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports
- On, Off, Dim All On, All Off commands
- Sunset/Sunrise calculation and activation
- Transmit and receive custom serial ASCII messages
- Issue commands to Distributed Audio Systems (Russound, Proficient, Nuvo)
- Read temperature sensors and communicate with thermostats
- Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote

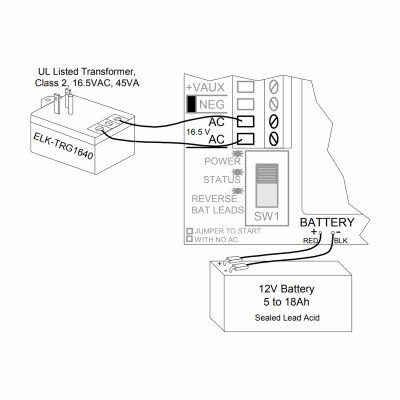

Power Supply
- Heavy Duty – 2.5 Amp power supply w/ 1 Amp continuous
- Dynamic battery test
- Master power switch and low battery disconnect
- PTC (fuseless) resettable overload protection
- Multiple auxiliary power terminals
