Kwikset SmartCode 916 Series Zigbee Touchscreen Deadbolt with Home Connect
Product Description
The Kwikset SmartCode 916 Touchscreen Electronic Deadbolt with HomeConnect technology allows your front door to communicate wirelessly to security and home automation systems via Zigbee.
- Capacitive touchscreen smart deadbolt locks/unlocks via keycodes, turnkey, and remote control through compatible mobile apps
- Share up to 30 user codes or control code access with a master code feature for added security
- One touch locking instantly locks your door as you leave
- "Random digit generator" feature – helps to ensure that user codes cannot be identified by examining fingerprints
- SmartKey lets you quickly re-key the lock yourself in three easy steps
- Patented side locking bar technology offers improved security by protecting against lock bumping
- Dramatically reduced interior size and sleek metal design fits standard doors (1-3/8in. – 2in.) no new screw holes required
- UL and BHMA grade 2 certified
- Full 128-bit encryption security
- Installs in minutes with just a screwdriver no hard wiring needed
- Works with Amazon Alexa via Samsung SmartThings
- Lifetime mechanical and finish warranty. 1 year electronics warranty

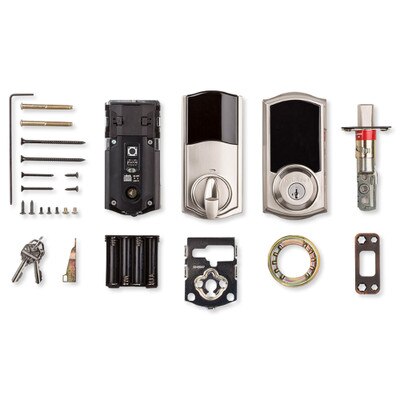

In The Box:
- Zigbee Touchscreen Deadbolt
- Latch and Strike
- 2 x Keys
- Installation Hardware
NOTE: Does not work with Control4. Does not include batteries.
Tech Specs
- Part Number:

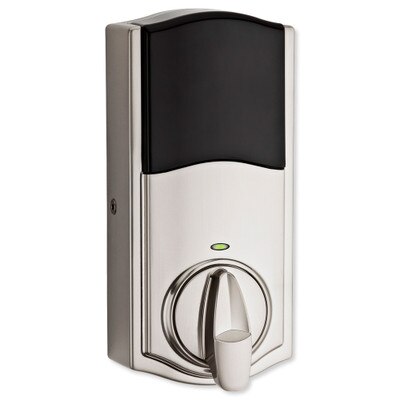

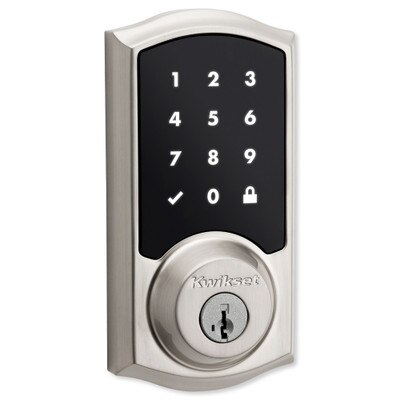

- Satin Nickel: 99160-031

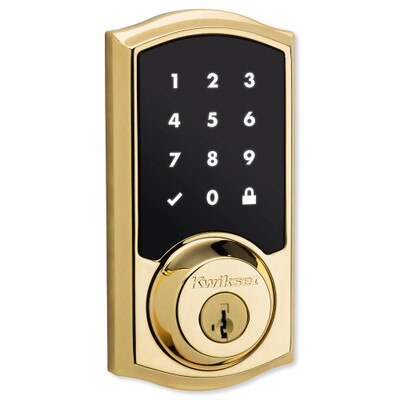

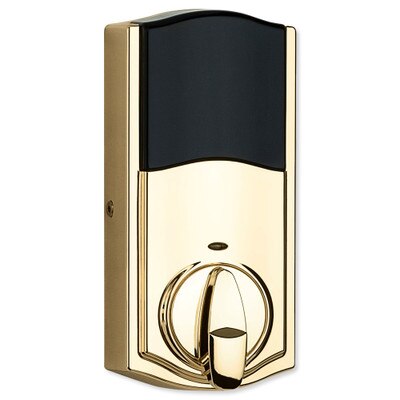

- Polished Brass: 99160-032

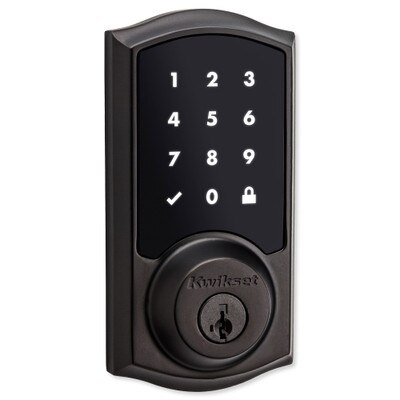

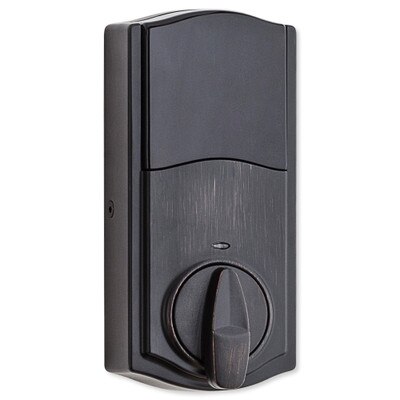

- Venetian Bronze: 99160-033
- UPC Code:
- 99160-031: 883351739795
- 99160-032: 883351760072
- 99160-033: 883351760089
- Function: Single cylinder deadbolt
- Door Prep: 2-1/8 inches diameter face hole and 1-inch diameter latch hole
- Backset: Adjustable 2-3/8 inches or 2-3/4 inches
- Door Thickness: 1-3/8 to 2 inches automatic adjustment
- Cylinder: SmartKey Re-Key Technology
- Faceplates: 1 x 2-1/4 inches round corner standard
- Strikes: Round corner strike 2-3/4 x 2-1/8 inches
- Latch: Round corner adjustable 2-3/8 x 2-3/4 inches
- Bolt: 1" throw, steel deadbolt
- Door Handing: Reversible
- Power Supply: Requires 4 AA alkaline batteries (not included).
- Battery Life: Approx. 1 year
- Wireless Protocol: Zigbee HA Version 1.2 (backwards compatible with V1.0 devices)
- Frequency: 2.4 GHz
- Range: Up to 35 feet (10m) indoors and 250 feet (76m) outdoors*
- Approvals: FCC, IC
- Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
Product Docs
- Kwikset SmartCode 916 Touchpad Electronic Deadbolt Instructions
- Kwikset SmartCode 916 Touchpad Programming and Troubleshooting Guide
- Kwikset SmartCode 916 Touchpad Electronic Deadbolt User Manual
- Kwikset SmartCode 916 Series Deadbolt Drilling Template
- Kwikset SmartKey ReKey Technology Instructions
- Kwikset Regulatory Compliance
