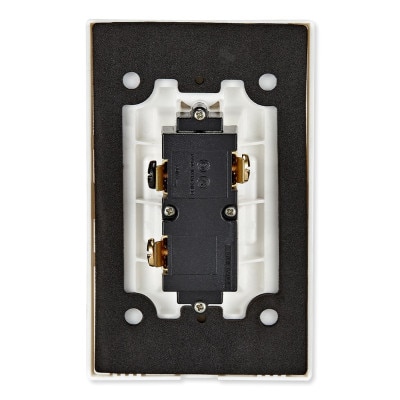

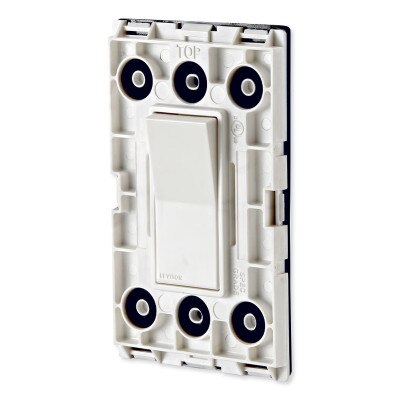

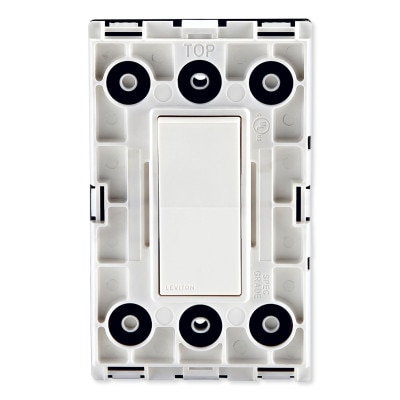

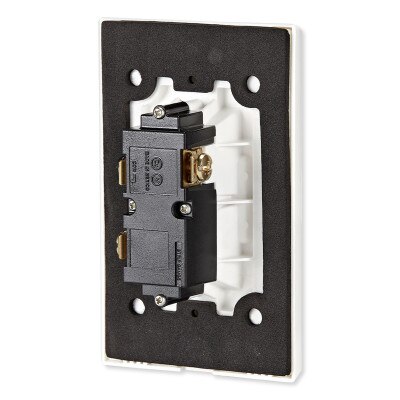

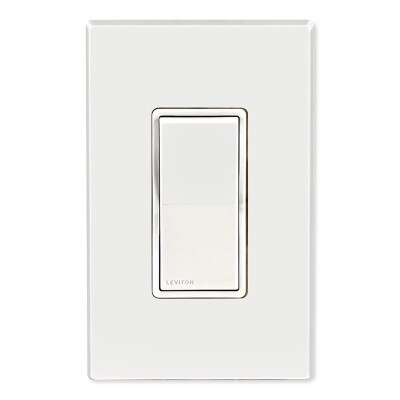

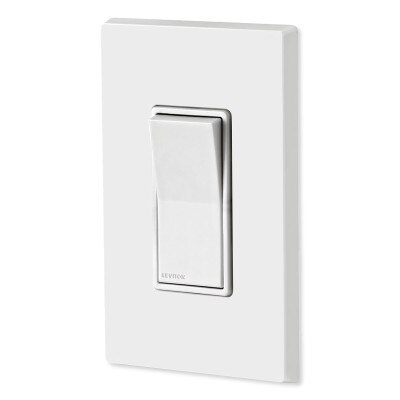

Leviton Decora Weather-Resistant 3-Way Switch, 15A/120V

$19.74
SKU: LVW56032W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Leviton Decora Weather-Resistant 3-Way Switch, 15A/120V is very durable and perfect for controlling outdoor lights or other electrical devices. It's built with UV stabilized thermoplastic material, which will keep it safe in damp and wet conditions, especially when using it for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, or to power outdoor ceiling fans and fountains.

  • All-in-one weather-resistant 3-way switch, no outdoor cover required
  • Actuation done with magnets, which allows the subplate/switch to be impervious to water intrusion
  • Rocker switch for smooth operation
  • Side and back wire for easy installation
  • NEMA 3R Rated to meet exterior Code

Why You Would Use This Product:

Providing electrical power for your outdoor living space typically means installing a standard switch with an outdoor cover. But, when using the Leviton Decora Weather-Resistant 3-Way Switch, 15A/120V, you won't have to bother using an outdoor cover because the switch is completely weather resistant. And because it's a 3-way switch, you'll be able to control a light from two different locations when using an additional 3-way switch (sold separately).

In The Box:

  • Weather Resistant Switch
  • Wallplate
  • Manual

Tech Specs

  • Part Number: W5601-2W
  • UPC: 078477223857
  • Switch Type: 3-Way
  • Amperage: 15 A
  • Color: White
  • Device Type: Rocker Switch
  • Feature: Weather-Resistant
  • Grade: Residential
  • Grounding: Grounding
  • HP Rating: 1/2HP-120V 2HP-240V-277V
  • Max. Amperage: 12 Amp
  • Pole: 1
  • Voltage: 120/277 VAC
  • Actuator Material: Thermoplastic
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Terminal Accom: Back Wire #10-#14 AWG; Side Wire #12-#14 AWG
  • Termination: Side Wire, Back Wire
  • Torque Range: 14 – 18 in.-lbs
  • Type: Weather-Resistant Rocker Switch
  • Certifications: NOM, cULus
  • Warranty: 2-Year Limited
