Napco StarLink Fire Commercial Fire Alarm Communicator, Sole Path, Verizon LTE (Open Box)

$142.42 $184.07
SKU: NPSLELTEVFIRE_OB

3 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

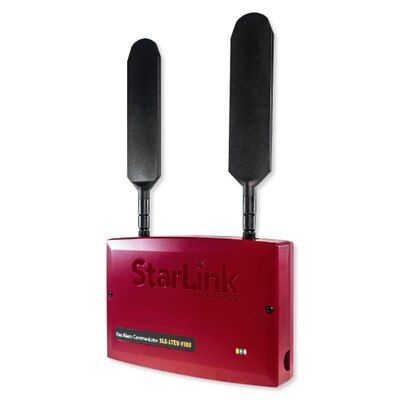

The Napco StarLink Fire® Commercial Fire Alarm Communicator, Sole Path, Verizon LTE connects your security system to Verizon's wireless LTE network to ensure constant connectivity between your system, your smart device, emergency services, and a central monitoring station.

Features:

  • Commercial fire alarm reports to connected central station and mobile devices virtually anywhere using Verizon cellular network
  • For use as primary or backup communications on all 12V-24V control panels and FACPs that communicate using Contact ID and 4/2
  • Full data reporting, including fire alarm and life monitoring, can be sent to any Central Station or mobile app via Verizon LTE Network
  • Powered by a connected control panel, self-supervised on 4-wires, no extra power supply or conduit necessary
  • Easy, flexible installation, activation & online account management
  • Patented Signal Boost signal amplification circuit and high-gain performance antenna for longer range and reliability nationwide
  • Over-the-Air Upgradeable Communicator Firmware for critical/mandatory updates
  • UL and NFPA 72 Fire Code-Compliant, also meets most regional compliances, i.e., CSFM, NYCFD, LAFD and more

Tech Specs

  • Part Number: SLE-LTEV-FIRE
  • UPC: 785026244415
  • Housing: Durable ABS plastic (red) includes three keyhole slots for mounting (easy alignment with triple gang boxes)
  • Diagnostic LED Indicators:
    • Green: Signal Strength
    • Amber: Busy/Activation
    • Red: Trouble
  • Electrical Ratings:
    • Input Voltage: 11-15VDC
    • Input Current: 71mA with peak RF transmission current of 200mA
  • Ratings for IN 1 Burg/Fire Input:
    • Input Voltage: 9-15VDC
    • Maximum Input Current: Up to 2mA
  • Ratings for IN 2 and IN 3:
    • Maximum Loop Voltage: 15VDC
    • Maximum Loop Current: 1.2mA
    • End of Line Resistor (EOLR) Value: 10K
  • PGM Output (3) Ratings:
    • Open Collector Outputs: 3V Max., active; 15V Max., inactive
    • PGM Sink Current: 50mA, Max
  • Environmental Ratings:
    • Operating Environment: 0 to 49°C (32-120°F)
    • Operating Humidity: Maximum 93% (non-condensing)
  • Dimensions: 5-3/8"x 7-7/8"x 1-7/8" (HxWxD)
  • Weight: 13.5 oz
  • Warranty: 3 Year

Product Docs
