On-Q/Legrand Flat Screen TV Pro Power and Cable Management Kit

$67.12
SKU: OQHT22U2xxR6

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Hide power and AV cables inside the wall without modifying electrical wiring with the On-Q/Legrand Flat Screen TV Pro Power and Cable Management Kit. This kit includes everything needed to extend power to wall-mount TV installations while providing the ultimate flexibility with the innovative decorator based power inlet strap and the recessed box with duplex power receptacle.

  • Extend power to a wall-mount TV without modifying the homes existing electrical wiring
  • Duplex receptacle powers multiple devices such as a TV, sound bar or streaming players
  • Recessed receptacle supports almost any type of power plug including right angles and wall warts
  • Unique decorator based power inlet strap provides flexible project support for ganging other AV connections
  • Hides both power and AV cables inside the wall for a clean, professional installation
  • Top connection is black to blend with TV mounts and hide cable connections, while bottom connection is white to blend with home décor.

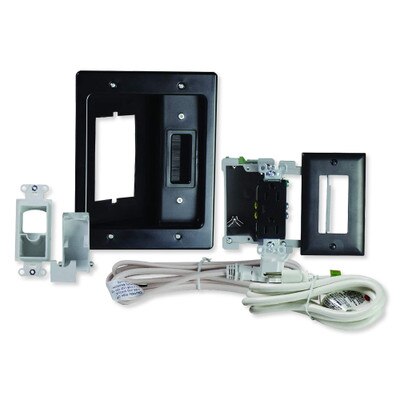

In The Box:

  • Power Outlet Module
  • Power Input Module
  • Receptacle with Electrical Box and Wall Plate
  • UL Rated Power Cable with Plug
  • 6 ft UL Rated Power Cord

Tech Specs

  • Part Number:
    • HT22U2-BK-R6 (Black)
    • HT22U2-WH-R6 (White)
  • Amps: 15A
  • Drywall Hole Size: Top: 5.38"W x 7.13"H Bottom: 2.25"W x 3.75"H
  • Material: Plastic
  • Minimum Depth Requirement (US): 3.75" (2 x 4 Studded Wall)
  • Mounting: In-Wall
  • Storage Temperature: 32°F to 122°F
  • Supported Standards: NEMA 5-15R
  • Volts (AC): 125 VAC
  • Wire Gauge: 14-2 AWG with Ground In-Wall Rated
  • Receptacle Type: Decorator Receptacle
  • Number Of Outlets: 2, and 1 cable access plate
  • Connection Type: 15A Decorator Receptacle
  • Installation Destination: Indoor – Not intended for Fire-Rated walls
  • Mounting Hardware Included: Yes
  • Installation Location: Indoor
  • Cord Length: 6 Feet
  • Dimensions: 11 x 8.75 x 4.25 inches (279.4 x 215.9 x 107.95 mm)
  • Certifications:
    • CSA Listing Info: CSA STD C22.2 No. 42 & 18.2
    • CSA Listed: Yes
    • CSA Standard: Yes
    • cULus: Yes
    • cUL Standard: UL STDs 514C & 498
    • ETL Listed: Yes
    • UL Listing No: UL514C and UL-498
    • UL Standard: Yes
  • Warranty: 2 Years
