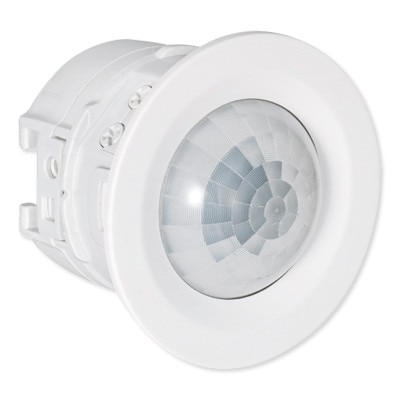

Optex Indoor Recessed Mount PIR Detector, 360 Degree
Product Description
The Optex Indoor Recessed Mount PIR Detector, 360 Degree, has a compact design for discreet installations on a ceiling and features detection sensitivity, allowing you to select High, Medium, or Low options. It has a 360Ëš volumetric detection area, providing coverage up to 20' at a mounting height of 14' 9" and comes with a tamper switch to notify you when the sensor is being tampered with.
- 20' detection area at mounting height 14'9"

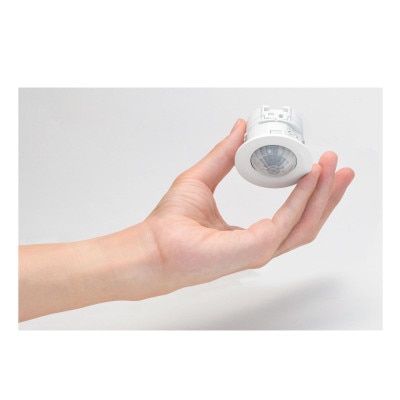

- Compact and discreet design
- Detection sensitivity: High, Medium, Low selectable
- Can be installed with recessed mount on a wall or ceiling
- Tamper function
Why You Would Use This Product:
The Optex Indoor Recessed Mount PIR Detector, 360 Degree, is ideal for discreet indoor surveillance where the sensor will naturally blend in with the decor and match the look of a recessed light. Its compact design keeps it unobtrusive while its 360° volumetric detection area capability makes it ideal for installations in large areas above doors or windows where unwanted intruders tend to break in.
In The Box:
- Indoor Recessed Mount PIR Detector
- Manual
Tech Specs
- Part Number:
- AP-360B(C): Wired
- AP-360BR(C): Battery Operated
- UPC:
- AP-360B(C): 788924505022
- AP-360BR(C): 788924505039
- Detection Method: Passive infrared

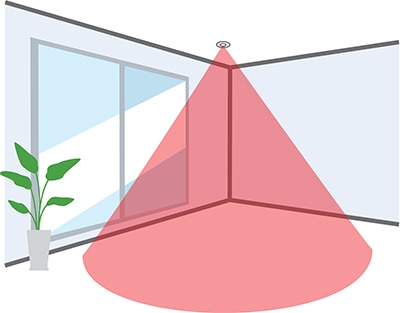

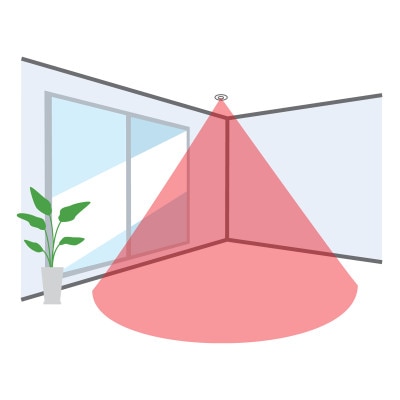

- Detection Area: Diameter 6 m (Diameter 20') at mounting height 4.5 m (14'9")
- Mounting Height: 8'2" to 14'9" ( 2.5 to 4.5 m)

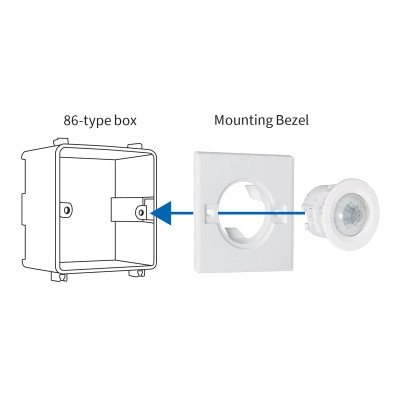

- Mounting Type: Recessed ceiling mount/86-type box mount
- Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2'/s)
- Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s)
- LED indicator:
- AP-360B(C):
- Warm-up upon power on: blinking
- Stand-by: off
- Alarm: solid on
- AP-360BR(C)
- Warm-up upon power on: blinking
- Stand-by: off
- Walk test: solid on
- Alarm: solid on
- Alarm Cycle: 2 s to 120 s (variable)
- Battery Saving Timer:
- AP-360BR(C): 120 s/ 5 s selectable
- Alarm Output:
- AP-360B(C): N.O./N.C., 28 V DC 200 mA max.
- AP-360BR(C): N.O./N.C., 3.6 V DC 10 mA max.
- Illuminance:
- AP-360B(C): 20 to 320 lux (variable/not detected)
- Tamper switch:
- N.C. 28 V DC 100 mA max
- The contact opens once the casing is detached
- Warm-up Time: Approx. 60 s
- Power Supply:
- AP-360B(C): 9.5 to 16 V DC
- AP-360BR(C): 2.7 to 3.6 V DC (CR123A battery)
- Current:
- AP-360B(C):
- 12 V DC
- Stand-by: 11mA, Max.: 13 mA
- AP-360BR(C)
- 3 V DC
- Stand-by: 10цA, Max.: 4 mA
- PIR Sensitivity: H/ M/ L
- Weight: 50 g (1.76 oz)
- Operation Humidity: < 95%
- Location: Indoors
- Dimensions:
- Diameter 2.05 x 1.67 inches (diameter 52 x 42.5 mm): without switch box mount
- 3.39 x 3.39 x 1.67 inches (86 x 86 x 42.5 mm): with 86-type box mount
