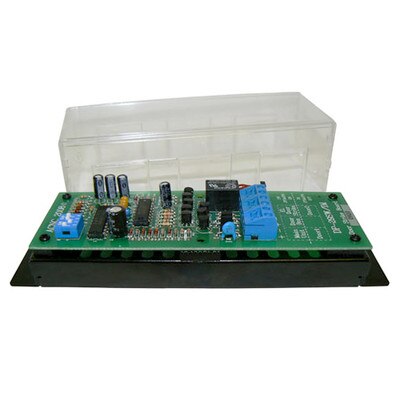

DoorBell Fon Telephone Keypad Relay Trigger

The Telephone Keypad Relay Trigger combines 2 former products into 1 device. Just by changing jumper settings, the DP29-SW or the DP29-IM can be selected. Both devices modify the telephone keypad to enhance your DoorBell Fon system.

DP29-SW: The Outbound Relay Trigger Controller will enhance the existing DoorBell Fon system by providing dry contact closure off the star (*) key or any other key selected by the DIP switch S1. This product is a great add-on that will trigger any electrical devices that you may want to operate from your telephone just by pressing a keypad button. The DP29-SW is also known as the Door Strike Controller.

DP29-IM: The Intercom Module will enhance the existing DoorBell Fon system by converting all the phones in your home or office into an intercom system. No new wiring is required and no intercom installation is necessary. There is no programming required either. This module uses your existing phones and wiring without additional connections.

• New design footprint allows the DP29-SW/IM to be mounted in any structured wiring cabinet or even on the wall
• Jumper 4 allows easy selection between NO (normally open) and NC (normally closed) switches for customized installation
• S1 Dipswitch allows use of other keypad buttons other than the default (*) key
• No external power source required
• Simple wiring procedure in series with the Door Station
• Jumpers 5 and 6 can be removed to switch from the DP29-SW to the DP29-IM

DP29-SW:

• Able to operate any electrical device from 1.0 Amps at 125 VAC or 2.0 Amps at 30 VDC
• 3+ seconds of dry contact provided using the selected key on the phone (contact time may be extended by simply holding the selected key)

DP29-IM:

• Intercom call is initiated by a press of a keypad button
• No programming required
• Compatible with wireless phones
• Only 1 unit required to operate all phones

Applications:

• Opening electronic gates and locks
• Multiple DP29-SW's can be used for multiple door stations
• Converts your existing home or office phone network into an intercom system
