Platinum Tools LANSeeker Cable Tester
Product Description

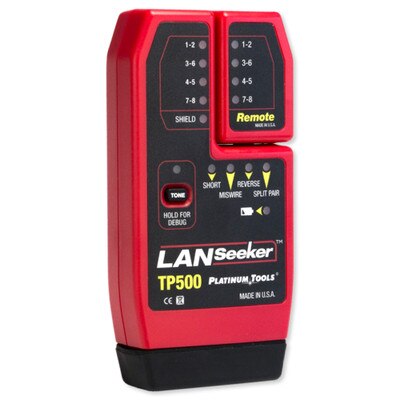

The LanSeeker is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LanSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected.
LanSeeker tests for shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.
- Displays cable test results on main and remote units in less than 2 seconds
- Immediately detects shorts by just plugging in one end of a cable to the tester
- Identifies shorts, opens, miswires, reversed and split pairs
- No on/off switch, automatically starts test when a connection is sensed between main and remote unit
- Debug mode diagnoses and displays faults one pair at a time
- Includes tone generator
- Self-stored remote
- Made in the USA
Applications

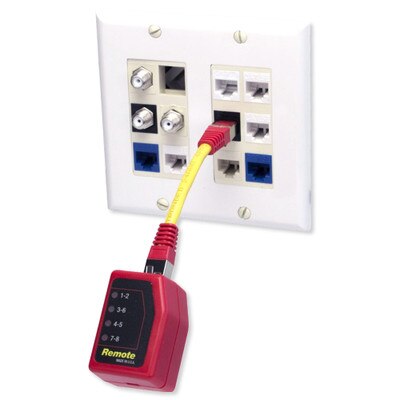

- Installation and troubleshooting of twisted pair security and datacom cables
- Identifies faults
- Generates tone for tracing
- Supports unshielded or shielded twisted pair
In The Box:

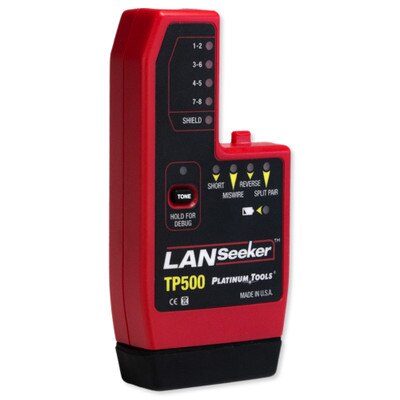

- Main unit

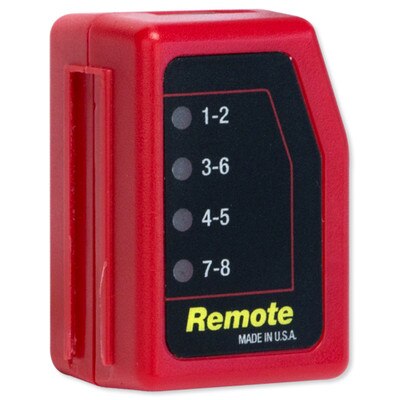

- Remote unit
- 9V battery
Tech Specs
- Part Number: TP500C
- Battery Life: Times are for the full capacity of the battery used continuously in one of the following modes (typical, 9V alkaline, included):
- Standby mode: 2.5 hours
- Cable testing mode: 20 hours
- Tone mode: 170 hours
- Cable Type: Shielded or unshielded, CAT3, CAT4, CAT5, CAT5e, and CAT6
- Minimum Cable Length (for testing split pairs): 3 feet (1 m)
- Maximum Cable Length (for testing): 1,000 feet (305 m)
- Coax Cable: 100 ohms maximum DC resistance, center conductor plus shield
- Temperature:
- Operating: 32° to 122°F (0° to 50°C)
- Storage: -4° to 158°F (-20° to 70°C)
- Humidity: 10 to 90 percent, non-condensing
- Dimensions: 1.2(H) x 2.85(W) x 14.5(L) inches (3.0 x 7.2 x 14.5 cm)
- Weight: 5.7 ounces (162 g) with battery
- Approvals: CE
- Warranty: 1-Year Limited
