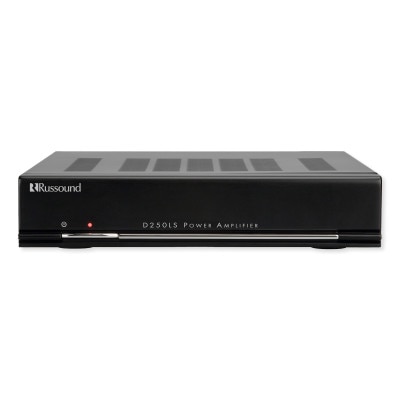

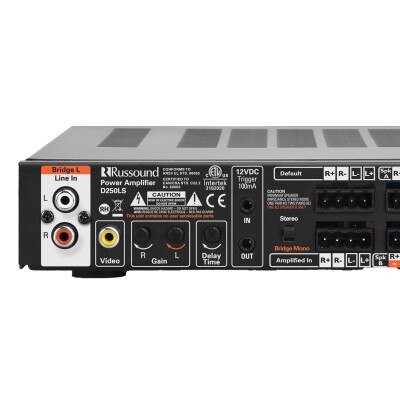

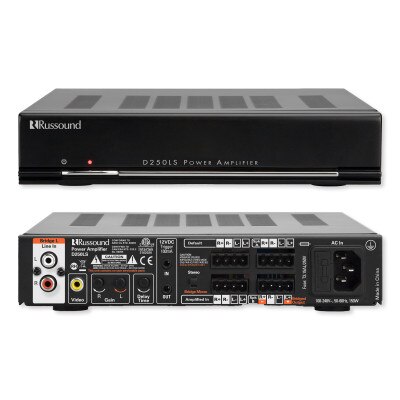

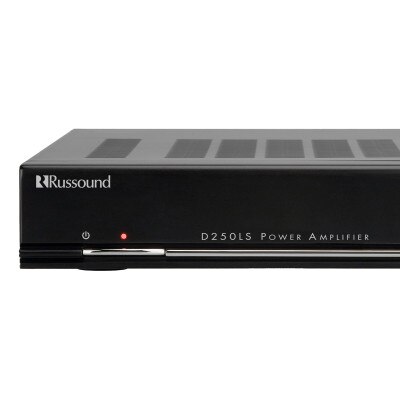

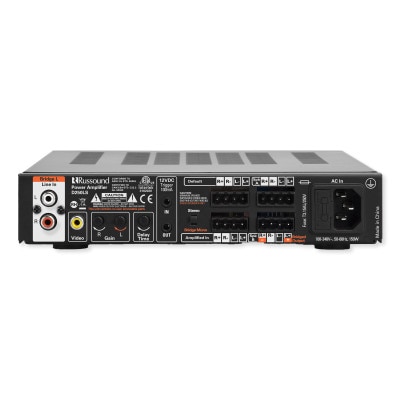

Russound Digital Amplifier, 2-Channel
Product Description
The Russound Digital Amplifier, 2-Channel is the perfect solution for switching audio from your main audio system to a local source in one of the zones, such as a bedroom. It features automatic local source switching capability, signal sensing for high and low level inputs, and video signal and 12V trigger options. Rated at 50 watts per channel into 8 ohms and 75 watts per channel into 4 ohms, the D250LS can also be used in bridge mode for 150 watts of power into a single 8-ohm load.
- Switches speakers between a local source and a distributed audio system
- Low-profile design permits use in areas most amplifiers won't fit
- Bridgeable to create one high-powered channel
- Robust circuitry for stability and long-term use
- Includes hardware for 4 mounting options
Why You Would Use This Product:

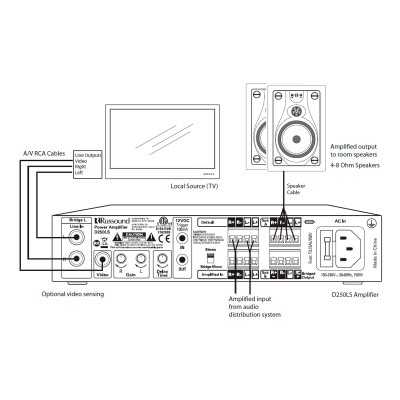

Usually in a whole-home audio system, speakers from all of the zones in your home are connected to the main system, so you can listen to audio throughout your home. But, if you want to listen to the audio that is playing from a local source in your bedroom, the Russound Digital Amplifier, 2-Channel will let you do that. This amplifier is designed to automatically switch the room's speakers to its own output. This means you'll be able to listen to audio in your bedroom from a local source, such as a PC or television.
In The Box:
- D250LS Digital Amplifier, 2-Channel
- Mounting Hardware
- Manual
Tech Specs
- Part Number: D250LS
- UPC: 612934533280
- Amplifier Channels: 2
- Channel Separation: >60dB @ 1 kHz
- Frequency Response: 20 Hz to 20 kHz ± 0.4 dB
- Fuse Rating: T3.15AL/250V
- Input Impedance: 47 k ohms Line Input
- Input Sensitivity:
- 70 mV for 1 watt at 8 ohms
- 550 mV for 50 watts at 8 ohms
- Power Consumption (Standby): <0.5 watts
- Power Output Continuous Stereo:
- 50 watts per channel at 8 ohms (<0.3% THD+N) @ 1kHz
- 75 watts per channel at 4 ohms
- 150 watts at 8 ohms, 2 channels bridged
- Power Requirement(s):
- North American: 120 VAC 60 Hz 2.5A
- European: 230 VAC 50 Hz 2.5A
- IEC 320 type connector with 3 terminal detachable power cord
- Signal to Noise Ratio: >112 dB A-weighted
- Switching Delay: 5 seconds to 5 minutes
- Total Harmonic Distortion:
- <0.3% THD+N from 20 Hz to 20 kHz for 50W into 8 ohms
- <0.05% from 20Hz to 20kHz for 1W into 8 ohms
- Trigger Input(s): 12 VDC 10 kilohms
- Trigger Output(s): 12 VDC 100 mA max
- Voltage Gain: 32 dB
- Zone Outputs: 1
- Warranty: 2 Year
