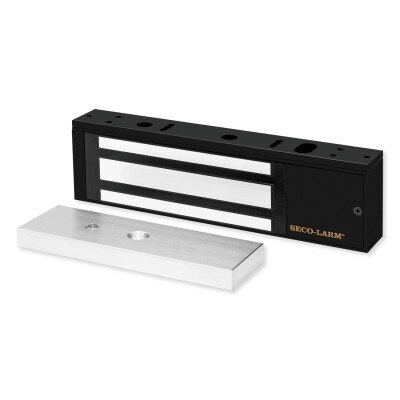

Seco-Larm Enforcer Electromagnetic Lock with Bond Sensor, 1,200 Lbs.

$153.44
SKU: SEE941SB1K2PQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Seco-Larm Enforcer Electromagnetic Lock with Bond Sensor, 1,200 Lbs, Black, uses 1,200 pounds of holding force to secure a door against unauthorized entry. It features a built-in bond sensor with a dry relay output (3A@12VDC) to monitor the door status as well as LEDs to show the lock/unlock status of the door. This lock has an anodized aluminum housing with a black finish and comes with an adjustable mounting bracket and detachable faceplate for easy access to wiring. It offers MOV surge protection and has no residual magnetism once it's deactivated.

  • Provides 1,200 pounds (545kg) of hold force and has no residual magnetism once deactivated
  • MOV surge protection for reliable, long-lasting use
  • Adjustable mounting bracket with detachable faceplate
  • Includes complete mounting hardware
  • Limited Lifetime Warranty

Why You Would Use This Product:

The Seco-Larm Enforcer Electromagnetic Lock provides an ideal solution for securing a door against unauthorized entry. When the lock is powered, it creates a strong magnetic field (1,200 lbs. of holding force) that attracts the lock to a steel armature plate that's mounted onto a door. Once locked, the door can only be opened when you deactivate the electromagnetic lock.

In The Box:

  • Electromagnet
  • Mounting Plate
  • Door Spacer
  • 2 x Steel Washers
  • Rubber Washer
  • 4 x Long Self-Tapping Screws
  • 2 x Short Self-Tapping Screws
  • Sexnut Bolt
  • 2 x Guide Pins
  • Door Spacer
  • 2 x Hex-head Mounting Screws
  • 2 x Tamper Caps
  • 2 x Hex Wrenches
  • Armature Plate
  • Armature Screw
  • Manual

Tech Specs

  • Part Number: E-941SB-1K2PQ
  • UPC: 676544021896
  • Color: Black
  • Holding Force: 1,200-lb (272kg)
  • Operating Voltage: 12/24 VDC (selectable)
  • Current Draw: 500mA@12VDC, 270mA@24VDC
  • Bond Sensor: Yes
  • Status LED: Yes
  • LED & Bond Sensor Status:
    • Green: Door is closed and locked
    • Red: Door is not closed and/or locked
    • Off: Door is in use/no power

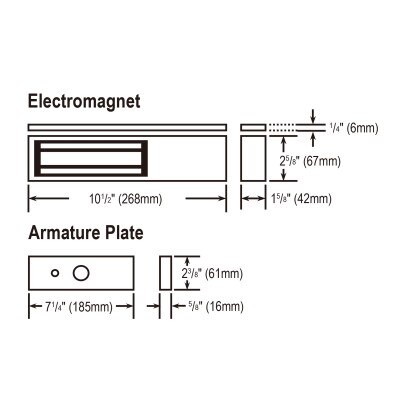

  • Dimensions – Magnet: 10-1/2"x2-5/8"x1-9/16" (267x67x67 mm)
  • Dimensions – Armature Plate: 7-1/4"x2-3/8"x5/8" (185x61x16 mm)
  • Destructive Attack: Level I
  • Line Security: Level I
  • Standby Power: Level I
  • Endurance: Level IV
  • Weight: 11-lb (5kg)
  • Certifications:
    • UL294 Access Control System Units – USA
    • UL10C Positive Pressure Fire Test – USA
    • UL10B Fire Test of Door Assemblies – USA
    • ULC-S104 Fire Test of Door Assemblies – Canada
  • Warranty: Limited Lifetime
