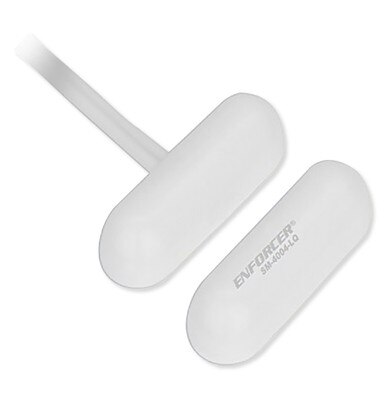

Seco-Larm Enforcer Magnetic Contact Capsule, Surface Mount, 3/4" Gap, NC
Product Description
Enhance security on your property and know when your door or window has been open/closed with the Seco-Larm Enforcer Magnetic Contact Capsule, Surface Mount, 3/4" Gap, NC. The contact reed switch is SPST and designed for closed loop circuits with ruthenium on gold underplating for a longer expected life.
- Miniature capsule-type surface-mount magnetic contacts
- 18" (46cm) Wire leads from center
- Adhesive mounting (double-sided tape included)
- Contact reed switch is SPST, ruthenium on gold underplating for a longer expected life
- For closed loop circuits
- 3/4" (19mm) Gap
- Lifetime limited warranty
In The Box:
- Magnetic Contacts
- Adhesive Double-Sided Tape
- Manual
Tech Specs
- Part Number: SM-4004-LQ/W
- Loop Type: Closed Loop
- Electrical Configuration: N.O. (SPST)
- Operation Gap: 3/4" (19mm)
- Connectors: 18" (46cm), Leads from center
- Color: White
- Material: High-impact ABS plastic
- Contacts: Ruthenium on gold underplating
- Contacting Rating:
- 1.0A@10VDC (max.)
- 10W 9 (max.)
- Operating Temperature: -15° to 160° F (-25° to 70° C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Switch Dimensions: 1 x 3/8 x 1/4 inches (25 x 10 x 6 mm)
- Magnet Dimensions: 1 x 3/8 x 1/4 inches (25 x 10 x 6 mm)
- Magnet Type: Rare-Earth Neodymium
- Credentials: RoHS
- Warranty: Lifetime Limited
