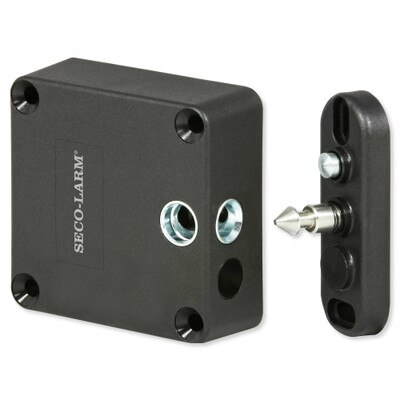

Seco-Larm Enforcer Motorized Cabinet Lock
Product Description
The SECO-LARM Motorized Cabinet Lock provides security for lockers, cabinets, cases, and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The Motorized Cabinet Lock's small size and compatibility with existing keypads or readers allow for various installations.
Features:
- Electronically secure lockers, cabinets, cases, and drawers
- Lock status sensor allows for monitoring whether the lock is engaged
- Door status sensor allows for monitoring whether the door is closed completely
- Compatible with existing keypads or readers
- Spring feature gently pushes door open
- Fail-secure operation
- Various mounting positions
- 12~28 VAC/VDC Operating voltage
- Low current draw: 69mA@12/24 VDC (standby), 165mA@12/24 VDC (active)
- 220-lb (100kg) Holding force
- Two locking orientations
In The Box:
- Lock Body
- Rosette
- 5-Pin connector
- 5 x Crimp connectors
- 4 x Long wood screws
- 2 x Short wood screws
- Manual
Tech Specs
- Part Number: CL-210M-U3BQ
- Operation: Fail-Secure
- Lock Status: Output: 1A@125VAC
- Door Status: Output: 1A@125VAC
- Operating Humidity: 0 to 95% Non condensing
- Holding Force: 220-lb (100kg)
- Operating Voltage: 12~28 VAC/VDC
- Current Draw: Standby: 69mA@12/24 VDC, Active: 165mA@12/24 VDC
- Housing Material: Polyamide
- Relock Delay: 2~5 Seconds
- Dimensions:
- Lock body: 2-3/8"x2-3/8"x7/8" (60x60x22 mm)
- Rosette: 13/16"x2-3/8"x1-1/16" (20x60x27 mm)
- Weight: 3-oz (93g)
- Warranty: 2 Year
