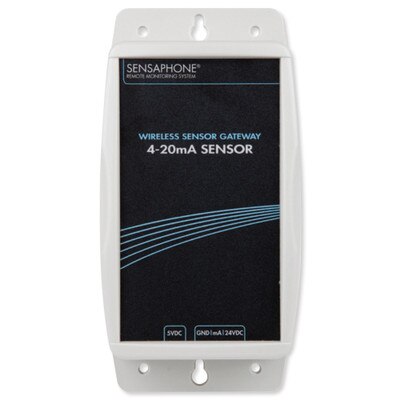

Sensaphone WSG30 Wireless 4-20mA Interface
Product Description
Monitor the output of any 4-20mA transducer.
The WSG30 Wireless 4-20mA sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter, 4-20mA input and a 24V loop power supply. The sensor can be used to monitor the output of any 4-20mA transducer. The sensor comes with a plug-in power supply and three AA alkaline batteries which will power the sensor for several hours if main AC power fails.
In The Box:
- WSG Wireless 4-20mA Sensor
- 3 x AA alkaline batteries
- 5VDC Power supply
- #6 Metal tapping screws
- Plastic drywall anchors
NOTE: Works with Sensaphone WSG30 gateway, not included.
Available for sale only in the U.S.
Tech Specs
- Part Number: FGD-WSG30-4-20
- Name: 4-20mA Interface
- Power: Three (3) AA alkaline batteries (included) and/or 5VDC (300mA) plug-in adapter (included)
- Battery Life:
- 24VDC Supply enabled: 15 hours
- 24VDC Supply disabled: 2 years at sampling interval = 3 seconds
- Input Load: 260 Ohms
- Accuracy: ± 1 percent
- Absolute Max Input Current: 23mA
- Operating Temperature: 32° to 122°F (0° to 50°C)
- Wireless Range: 300 feet (90m) indoors
- Connection: Wireless
- Operating Frequency: ISM 2.4 GHz
- Transmit Power Output: 100mW (20dBm)
- Housing: White Plastic
- Dimensions: 6.8 x 3.5 x 1.6 inches (173 x 89 x 40mm)
- Sensor Series: WSG Wireless
- Warranty: 1 Year
