Speaker Wire, 14AWG 41-Strand BC, 6C, LED RGB-TW Cable, Unshielded, 500'
Product Description

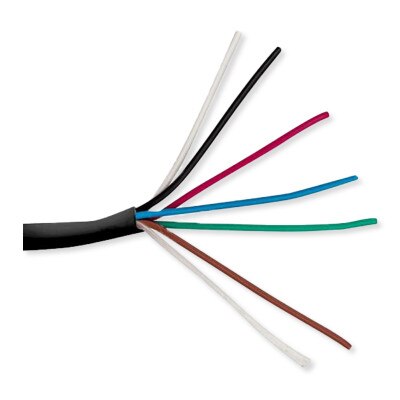

This Speaker Wire (14AWG 41-Strand) is ideal for professional speaker installations and LED strip lighting applications. The insulation is designed with PVC material and the jacket is made out of LLDPE material. The 6 conductor wires are made out of stranded bare copper and the insulation colors are black, red, white, green, blue, and brown.
- Description: 6C/14 AWG 41-Strand BC, LED RGB-TW Cable, Unshielded, UL CL2/3R FT4, PVC Jkt
- Applications: LED strip lighting cable RGB installations and for general purpose used in audio applications
- Regulatory: UL 13, Type CL2/3R – EU RoHS 2011/65/EU Compliant
- Available in spools of: 500 Ft.
In The Box:
- Speaker 14AWG LED RGB-TW Cable (500 ft. Wooden Spool)
Tech Specs
- Part Number: 14/6-RGBTW-BK
Marking:
- STRUCTURED CABLE PRODUCTS – – – P/N 14/2SH-DB – – – 2 COND 14 AWG STRANDED SHIELDED PE JKT CMX OUTDOOR / DIRECT BURIAL — CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 3 4 5 6 7 8 9 FT
- Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725 EU RoHS 2011/65/EU Compliant
- Application: Speaker Cable
Conductor
- Material: Stranded Bare Copper
- Size: 14AWG X 6C(2.11mm^2)
- Construction: 41/0.25mm ±0.004mm
Insulation
- Material: PVC
- Min. Thickness: 0.28mm (0.0110 inch)
- Avg. Thickness: 0.30mm (1.1811 inch)
- Diameter: 2.55mm ±0.10mm
- Colors: Black, Red, White, Green, Blue, Brown
Jacket
- Material: LLDPE
- Min. Thickness: 0.60mm (0.0236 inch)
- Avg. Thickness: 0.63mm (0.1181 inch)
- Diameter: 8.45mm (0.3327) ±0.20mm
- Rip Cord: Nylon
- Color: Black
Electrical and Physical Characteristics
- Operating Temperature Range: -4 to 167°F (-20 to 75°C)
- Minimum Installation Temperature: 32 to 104°C (0 to 40°C)
- Conductor Resistance: Max 9.02 ohm/km at 20°C (68°F)
- Insulation Resistance: Min 50Mkm at 20°C (68°F)
- Dielectric Strength: Min AC1.5KV
- Rated Voltage: 300V
- Test Voltage: 800V/min
- Impedance: 30 plus or minus 5 ohms
- Capacitance: 50.9 ±5pf/ft
- Maximum Current: 6.4A at 25°C (77°F)
