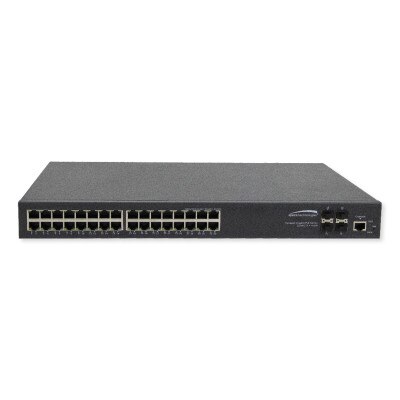

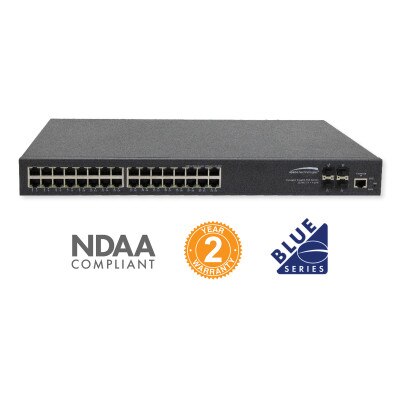

Speco 36-Port Managed Gigabit Switch with 32-ports PoE and 4xSFP Uplink
Product Description
The Speco 36-Port Managed Gigabit Switch with 32-ports PoE and 4xSFP Uplink is a managed Gigabit switch offers 36 ports, including 32 ports with Power over Ethernet (PoE) capability, providing both data and power to compatible devices such as IP cameras, access points, and VoIP phones. The Speco switch also features 4 SFP uplink ports for high-speed connections to other network devices or fiber optic links, ensuring efficient data transfer and network performance.
Key Features:
- 32 RJ45 Ports provide ample connectivity options for expanding and managing your network infrastructure
- 32 PoE Ports deliver power and data to compatible devices over a single Ethernet cable, simplifying installation and reducing cable clutter
- 4 SFP Uplink Ports offer high-speed uplink connections for linking multiple switches or connecting to fiber optic networks
- Supports advanced network management features such as VLAN support, QoS, and port mirroring, providing greater control over network traffic and performance
- Supports gigabit Ethernet speeds for fast and reliable data transfer across your network
- Rack Mountable design fits in standard network racks, making it ideal for centralized network deployments in homes or businesses
Why You Would Use This Product:
The Speco 36-Port Managed Gigabit Switch provides a centralized networking solution that can power and connect all your IP cameras, access points, and other devices with ease. You can effortlessly manage and expand your home or business network while ensuring reliable connectivity and power delivery to your devices. Whether you're setting up a security surveillance system with PoE cameras or creating a robust Wi-Fi network with access points, this switch offers the scalability and performance you need. Its managed functionality also allows you to prioritize critical network traffic, ensuring optimal performance for latency-sensitive applications such as video streaming or VoIP calls.
In The Box:
- Network Switch
- Power Cord
- 2 x Rack ears
- Transceiver Modules
- User Manual
Available for sale only in the U.S.
Tech Specs
- Part Number: P32S36GM
- UPC: 030519033299
- Warranty: 5 Year
Ports
- Fixed Ports:
- 32*10/100/1000 Base-T + Uplink
- 4*1000 Base-X
- Management Port: Supports console
- LED Indicators: PWR, SYS, Link/ACT LED
Cable Type & Transmission Distance
- Twisted-Pair:
- Non PoE: 0-100m (CAT5e, CAT6)
- PoE (1000Mbps): 0-100m (CAT5e, CAT6)
- PoE (10Mbps): 0-250m (CAT5e, CAT6)
- Mono-mode Optical Fiber: 20/40/60/80/100KM
- Multi-mode Optical Fiber: 550m
- Network Topology: Ring Topology, Star Topology, Bus Topology, Tree Topology, Hybrid Topology, Network Topology
Electrical
- Input Voltage: 100-220V/AC 50/60Hz 1A-5A
- Total Power Consumption:
- Non PoE full load <40W
- PoE full load <440W
PoE Support
- PoE Ports: 1-32
- PoE Protocol: 802.3af, 802.3at
- Pin Assignment: 1,2+:3,6-
- PoE Management: Yes
- Management IP Supports: IPV4/IPV6
- SNMP Supports: SNMPv1/v2c/v3
- Additional Support Includes:
- CLI
- Console
- Telnet/SSH
- WEB Management
- User Management
- System Log
- Configuration File
- Download/Upload
- Upgrade Firmware
Convergence
- ACL Supports:
- ACL 500
- IP standard ACL
- MAC extend ACL
- IP extend ACL
- QoS Supports:
- QoS remarking, priority mapping
- SP, WRR queue scheduling
- Entry and exit speed limit
- Flow-based QoS
Environment
- Operating Temperature: -13 to 140°F (-25 to 60°C)
- Storage Temperature: -40 to 158°F (-40 to 70°C)
- Relative Humidity: 5%~95% non-condensing
- Thermal Methods PoE: forced cooling by fan
- MTBF: 100,000h
Mechanical Dimensions
- Product Size: 17.25" x 11.75" x 1.9" (440*290*44mm)
- Installation Method: 1U Rack Mount, Rack ears included
- Weight: 8.8lbs (4.0kg)
EMC & Ingress Protection
- Surge Protection of Power: Common mode 6KV, differential mode 6KV
- Surge Protection of Ethernet Port: Common mode 4KV
- ESD: Contact 8K, air 15K
- Free Fall: 0.5m
Layer 2 Switching
- Switching Capacity: 72G
- Packet Forwarding Rate: 53.568 Mpps
- MAC Address Table: 16K
- Buffer: 12M
- Forwarding Delay: <10us
- VLAN: Supports 4K
- Jumbo Frame: Supports 10Kbytes
- Spanning Tree: Supports STP/RSTP/MSTP
- Ring Protocol: Supports ERPS
- Link Aggregation: Supports 12 pairs
- Multicast Supports: IGMP Snooping
- Additional Features / Support Include:
- MDX/MIDX
- Flow Control
- Port Mirroring
- Storm Control
- Interface Counters
- QINQ
- 802.1X
- Port Isolation
- Rmon
- NTP Client
- DHCP Client
- DHCP Snooping
- Ping/Tracert Test
- Fiber Transceivers DDM
