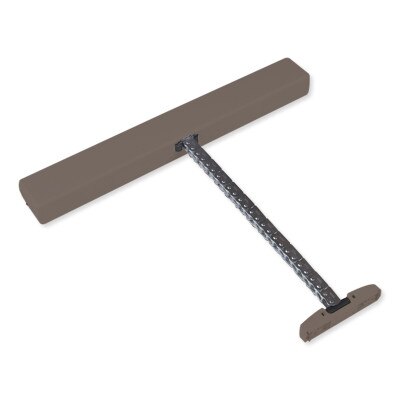

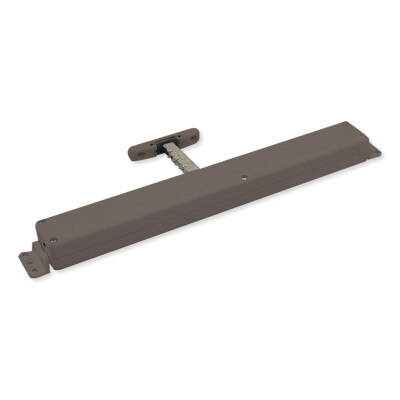

Truth Marvel Power Window System, Bronze
Product Description
The Truth Marvel Power Window System, Bronze is designed to add motorized opening and closing for a single awning window or skylight that weighs up to 90 lbs. A durable double-link chain opens windows and skylights up to 9.5". The Truth Marvel system is controlled by a standard, single pole / double throw switch or with a Truth Marvel Handheld Remote (42.90.00.201) and Truth Marvel RF Receiver Pack (42.90.00.300), both sold separately. Marvel Motorized Operators come with mounting brackets that secure the operator to the center of the window, making this system one of the easiest to install. Marvel Motorized Operators are designed to work on windows with a properly sized counterbalance hinge and operator.
- Motorized operator capable of opening/closing awning windows or skylights weighing up to 90lbs
- Durable double link chain produces 9.5" of chain travel
- Controlled manually using a standard, single pole / double throw switch or with a Truth Marvel RF Receiver and Remote Control.
- Designed to work on awning windows with properly sized counterbalance hinges
- Three mounting brackets styles included for easy mounting
- Can be face-mounted or mounted to applications with sills
- Multiple units can be controlled from one switch
- ANSI/UL 325 and CAN/CSA C22.2 certified
In The Box:
- Power Window Motor
- Mounting Brackets
- Mounting Hardware
- Power Cord
Notes:
- For indoor applications only.
- In any application, the pull or push force of the chain should not exceed 45 lbs.
- Marvel power window systems are designed to fit onto window or skylight hardware manufactured by Truth Hardware only. Truth Marvel RF Receiver Pack (42.90.00.300) required for remote control with Truth Marvel Rain Sensor (42.90.00.202) or Truth Marvel Handheld Remote (42.90.00.201) (sold separately).
Tech Specs
- Part Bumber: 42.90.03.100
- Amperage Draw: 120 V; 60 Hz
- 0.12 amp draw at a 45 lb load
- 0.040 amp draw at 0 lb load
- Input Voltage: 80V-260V at 50-60 Hz
- Operating Temperature: -5°F to 140°F (-20°C to 60°C)
- Dimensions: Case: 14-1/4 (L) x 1-7/8 (W) x 1-5/16 (D) inches
- Approvals: ANSI/UL 325 Certified and CAN/CSA C22.2 Certified
- Warranty: 1 Year
