2GIG Wireless Touch Screen Remote Keypad for GC2e Panels

$152.08
SKU: LN2GIGTS2E

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

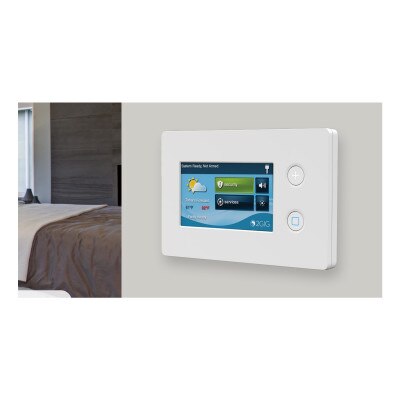

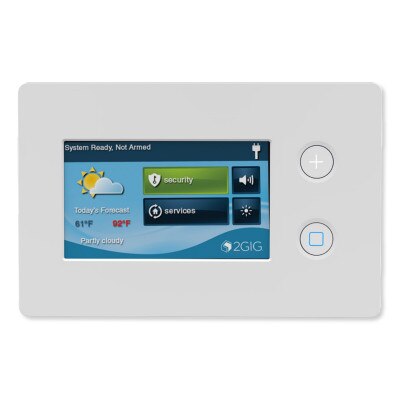

The 2GIG-TS2 Touch Screen Wireless Keypad is a remote control device that offers the functionality of a system keypad but also adds an additional location within the home for users to control their 2GIG system. Using the 2GIG-TS2, users can arm and disarm the system, view sensor zones, as well as control door locks, lighting and thermostats all with the same interface found on the GC2e control panel. The keypad is designed for indoor use only.

  • Full color touchscreen interface

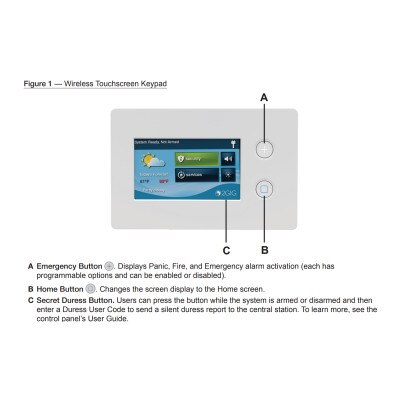

  • One-touch Home and Emergency navigation
  • Quick and responsive bi-directional communication with the compatible 2GIG GC2e control panel
  • Add up to 4 TS2 Wireless Touchscreen Keypads to a compatible 2GIG control panel
  • Access to all Z-Wave functionality
  • See and hear system status, chimes and alerts
  • Screen and buttons darken completely and wake with one touch
  • Same easy-to-use interface as the 2GIG control panel
  • Can be used with optional power supply with DC plug
  • Desktop mounting with optional 2GIG-TS1-DESK accessory
  • Over the air or USB firmware updates
  • 1 Year warranty

In The Box:

  • Touchscreen Keypad
  • AC Power Supply
  • AC Power Supply Bracket with adhesive backing
  • Plastic Wall Anchors and Phillips Head Screws
  • Plastic Zip Tie
  • Installation instructions

NOTE: Requires the XCVR2e-345 transceiver module, sold separately. Not for UL 985 installations.

Tech Specs

  • Part Number: 2GIG-TS2-E
  • UPC: 093861149429
  • Display: 4.3" QVGA full color
  • Wireless Signal Range: 500 ft (152.4 m) line of sight with Wireless Control Panel
  • Transceiver Frequency: 900 MHz frequency-hopping, bi-directional communication
  • Radio:
    • 25 channel frequency-hopping spread spectrum
    • 403 kHz channel spacing (910.2-920.275 MHz)
    • GFSK modulation, 128 kbps, +19dBm maximum RF power out
  • Wireless: 900 Mhz Frequency hopping bi-directional communication
  • Power: 14 VDC
  • Color: White
  • Housing Material: ABS Plastic
  • Dimensions: 6.7(H) x 4.3(W) x 0.8(D) inches
  • Weight: 8.8oz
  • Operating Temperature: 32°â€“120 F° (0°â€“49° C)
  • Relative Humidity: 5 to 95% non-condensing
  • Regulatory Approvals: FCC Part 15
  • Warranty: 1-Year Limited
