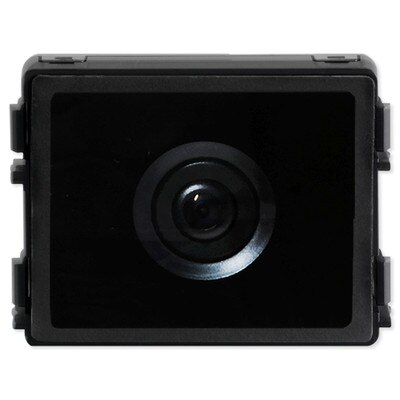

ABB-Welcome Camera Module
Product Description
- Video camera with large detection angle (H 86°, V 67°, D 104°) and manually mechanical adjustment (H ± 15°, V ± 15°)
- Anti-fog design with in-built heater
- Scratch and fire resistant finish
- Built-in infrared lighting ensures clear picture at night
- Secret "surveillance" enables users to surveil one area through the camera of the outdoor station, whose backlight will not be switched on
- Optional to connect one additional output of camera for surveillance inside the video indoor station
- Optional to choose the standard of the video signal, either PAL or NTSC (according to the local power frequency) for clear video quality
NOTE: Connects to ABB System Controller (not included).
Tech Specs
- Part Number: M251021C
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Protection: Waterproof: IP54; Vandal-proof: IK 07
- Bus Voltage: 20-30VDC
- Dimensions: 2.83 x 3.82 x 1.61 inches
- Warranty: 2 Years
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
