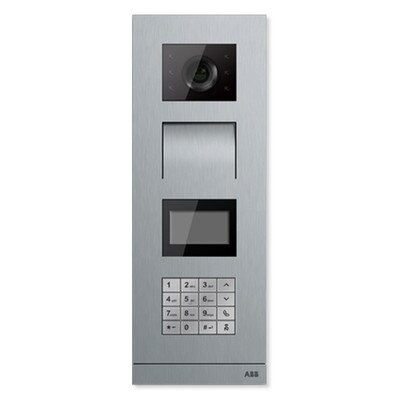

ABB-Welcome Video Outdoor Station with Keypad and Card Reader, Stainless Steel
Product Description
The ABB-Welcome Video Outdoor Station with Keypad and Card Reader, Stainless Steel is a pre-assembled outdoor intercom station that functions within the ABB-Welcome System. This specific station includes the Audio Module with Speech Synthesis (M251024A-A), Camera Module (M251021C), Keypad Module (M251021K-A), and Display Module with Card Reader (M251021CR/M251022CR), and a 4-module Stainless Steel Faceplate (41384CF-S).
Visitors can call an indoor ABB station by entering a call code or choosing a name in the door station's directory to talk with the resident answering the selected ABB indoor station, who can see the caller through the outdoor station's camera. Users and visitors may unlock a connected door lock with a compatible proximity card/tag (sold separately). The station's stainless steel faceplate helps protect the internal modules from various environmental factors and give your front door a sharp, futuristic look.
Features:
- Built-in card reader in display module supports either ID card or IC card reading
- Video camera with large detection angle (H 86°, V 67°, D 104°)
- Manual camera angle adjustment (±15° horizontal and vertical)
- Calling code can be set with 1-6 digits of only numbers or numbers and letters
- Allows public password and up to 6,000 customized 3-8 digit passwords
- Repeatedly inputting wrong password locks keypad
- Dustproof and waterproof as IP54, and vandal-proof as IK07
In The Box:
- Audio module (M251024A-A)
- Keypad module (M251021K-A)
- Camera module (M251021C)
- Display module with card reader (IC Card: M251021CR; ID Card:M251022CR)
- Stainless steel faceplate, 4-gang (51024CF-A)
- Installation tool
NOTE: Connects to ABB-Welcome System Controller or indoor station (not included). Proximity cards/tags not included.
Tech Specs
- Part Number:
- ID Card Reader: M21321K-S
- IC Card Reader: M21322K-S
- Dimensions: 13.66 x 4.92 x 1.93 inches
- Warranty: 2 Years
Audio Module with Speech Synthesis, Aluminum (M251024A-A)
- Material: Aluminum
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Protection: Waterproof: IP54; Vandal-proof: IK 07
- Power Supply: Door opener (Lock-GND): 18 V 4 A impulsive, 250 mA holding
- Floating Output: Door opener (COM-NC-NO): 30 V AC/DC, 1A
- Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 1 mm2
- Bus Voltage: 20-30VDC
- Dimensions: 2.83 x 3.82 x 1.5 inches
Keypad Module, Aluminum (M251021K-A)
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Protection: Waterproof: IP54; Vandal-proof: IK 07
- Bus Voltage: 20-30VDC
- Dimensions: 2.83 x 3.82 x 1.22 inches
Camera Module (M251021C)
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Protection: Waterproof: IP54; Vandal-proof: IK 07
- Bus Voltage: 20-30VDC
- Dimensions: 2.83 x 3.82 x 1.61 inches
Display Module with Card Reader (M251021CR/M251022CR)
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Protection:
- Waterproof: IP54
- Vandal-proof: IK 07
- Bus Voltage: 20-30VDC
- Dimensions: 2.83 x 3.82 x 1.22 inches
Stainless Steel Faceplate, 4-Gang (41384CF-S)
- Material: Stainless steel
- Size: 1/4
- Dimensions: 13.66 x 4.92 x 0.75 inches
System Capacity
- 9 Guard Units per System
- 60 Buildings per System
- 250 Indoor Stations per Building
- 9 Outdoor Stations per Building (including gate and other outdoor stations)
- 2 Locks per Outdoor Station
