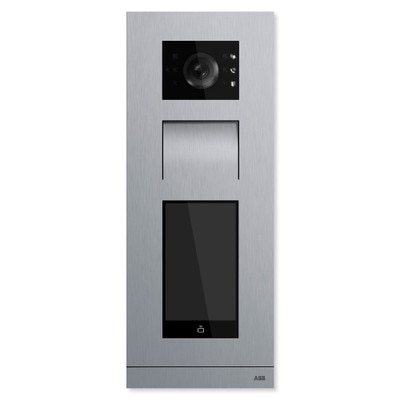

ABB-Welcome IP Video Outdoor Station, Touch 5", Stainless Steel
Product Description
The ABB-Welcome IP Video Outdoor Station, Touch 5" is a touchscreen outdoor intercom station that allows AV communication with residents indoors. This model includes the A/V Module (851381M-S) and Big Display Touchscreen Module (851381DP), as well as the Stainless Steel 3-Module Faceplate (51023CF-A). Guests call residents by pressing the touchscreen to talk with the resident, who can see visitors through the outdoor station's camera from a video indoor station or smart device. The Video Outdoor Station is powered and connected to other ABB-Welcome IP stations via Ethernet connections.
- Outdoor intercom station with capacitive touchscreen & virtual keypad
- PoE connectivity places data transfer and power supply into one cable
- Wide-angle 720P HD camera with manual view adjustment
- Integrated optic sensor for automatic switch between day/night mode
- Anti-fog coating and built-in heater ward off dust and moisture
- Includes accessibility via ID card or proximity key fob
In The Box:
- ABB-Welcome IP Video Outdoor Station, Touch 5"
- Manual
NOTES: Requires a connection to a router (sold separately) and an Internet connection. Requires use with a video indoor station, sold separately. Installation hardware and printing on nameplate not included. Mounting boxes for surface mounting or flush-mounted installation sold separately. Requires a myABB-LivingSpace account and connection to the ABB-Welcome IP Gateway (part # 83342-500-01) in order to gain remote access with your smartphone via the ABB-Welcome App.
Tech Specs
- Part Number: Stainless Steel: H81381T-S
- Device Power Supply: PoE switch or local power supply
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 410 mA
- 24 V DC, 450 mA
- Operating Temperature: -20 °C + 55 °C (-4 to 131 degrees F)
- Display Type: LCD
- Display Size: 5 in
- Camera Type: CMOS
- Camera Viewing Angle: 130°
- Resolution Ratio: HD (1280 x 720 pixel)
- Power Supply for Door Opener: 18 V, 4 A impulse, max. 250 mA holding
- Floating Output for Door Opener:
- 230 V AC, 3 A
- 30 V DC, 3 A
- Video Codec: H.264
- Audio Codec: G.711
- Network Connection Standard: IEEE 802.3, 10Base-T/100Base-TX, auto MDI/MDI-X
- Ratings and Certifications: IP54, IK07
- Dimensions: 5.32 x 13.74 x 0.69 inches (135 x 276.9 x 17.6 mm)
- Warranty: 2 Years
