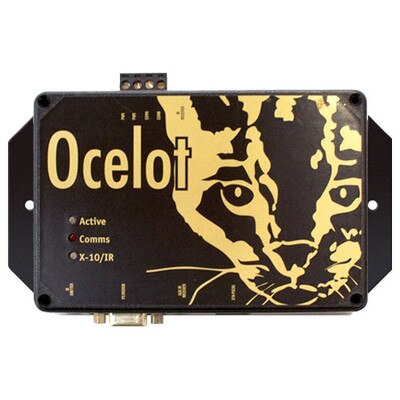

Applied Digital Ocelot Home Automation Controller
Product Description
Automate Home Theaters, Lighting, Security, Sprinkler Control and much more. You are limited only by your imagination!
Connect multiple Ocelots, Leopard IIs, ADICON 2500 Expansion Modules and Bobcat Single Point Sensors for controlling just about anything you can think of. You can also send and receive X10, IR, and transmit ASCII directly from the Ocelot.
You can connect the Ocelot to your computer or use as a stand-alone controller. Setup is simple with the C-Max software, included with purchase.
- Fully programmable, if-then-else control.
- Over 4,000 lines of programmable code.
- Infrared send and receive.
- 2-Way X10.
- RS-485 expansion to a variety of low cost I/O modules.
Tech Specs
Size
- 6.5"L x 3.75"W x 1.38"H
I/O
- RS232 – DB9F with 6' Cable
- X-10 RJ11 Jack for direct connection to TW-523 or PSC05
- ADNET: 2 Screw Terminals (up to 14 AWG)
- Power: 2 Screw Terminals (up to 14 AWG)
- Infra-Red In – Stereo Jack
- Infra-Red Out – Stereo Jack
Includes
- User's Guide and C-Max Control Wizard Software
- 9 Pin Comms Cable for OCELOT-PC communication
- 25' cable for TW523 communication (TW523 not included)
- 9-12V @ 200mA power suppl
