Aeotec Z-Wave Plus v2 illumino Dimmer Wall Switch, Gen7


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

The Aeotec Z-Wave Plus illumino Dimmer Wall Switch provides the power to manually control, elegantly dim, and intelligently automate and schedule your lighting. The Dimmer Switch enhances individual lights or full light-banks with automatic timers and responsive automation and is compatible with most common bulb types, and can manage bulbs up to 500 watts of lighting. The illumino Dimmer Switch uses Z-Wave Plus V2 (Z-Wave 700) technology for incredible wireless range, secure transmission, and easy inclusion and setup into Z-Wave networks, and also includes compatibility with Z-Wave hubs such as the Aeotec Smart Home Hub and SmartThings.

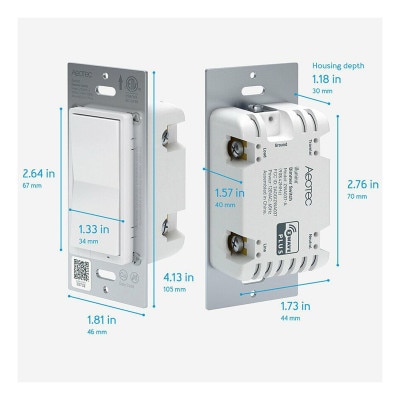

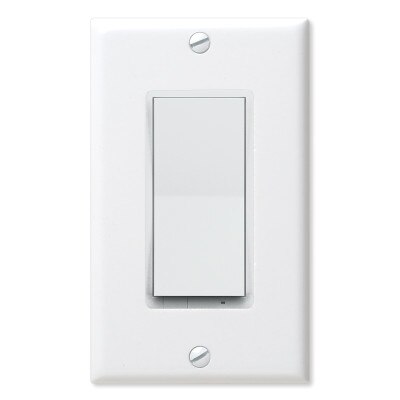

With its electronics measuring only 1.18" in depth and 1.73" in width, the illumino Dimmer Switch's low-volume allows it to fit into most single and multi-gang backing boxes without difficulty. Any illumino Dimmer Switch can be installed with screwed or screwless faceplates. Wiring terminals are clearly marked and firmly secured with easy-access to dual-offset Ground, Line, Load, required Neutral, and optional Traveler ports for 3-way installations.

  • Control the brightness of lights from the switch or a Z-Wave hub's app. Change the speed at which those same bulbs brighten or dim through illumino Dimmer Switch's configuration options.
  • Supports LEDs and CFLs up to 150W, Incandescents and Halogens up to 500W
  • Timers can automatically turn off lights for a customisable period of time or respond to automated scenes
  • Control from the switch, from an app, or control from other switches through illumino Dimmer Switch's unique virtual multi-way and wired multiway wiring for 3-way configurations.
  • Responsive and intelligent lighting can be created by syncing illumino Dimmer Switch with a compatible Z-Wave gateway and any number of Z-Wave devices
  • The speed of lighting changes can be customized through the paddle, as can be a myriad of features from multi-tap control to limiting brightness and dimming levels
  • LED notifications with customisable colors and brightness
  • Built atop of Z-Wave Plus v2 (700 series), and S2 security with a wireless signal range as great as 492 feet / 150 meters
  • Acts as a Z-Wave repeater, strengthening your Z-Wave automation system
  • Compatible with more bulbs as neutral wiring is required
  • Engineered and certified to FCC and ETL safety standards

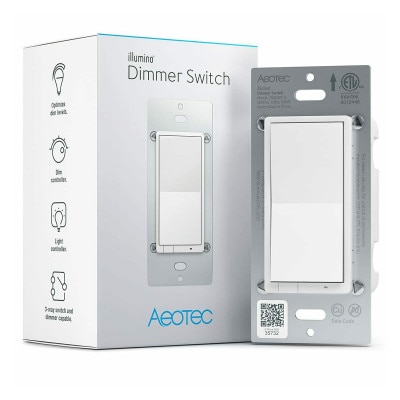

In The Box:

  • Illumino Dimmer Switch
  • Manual

NOTES: Wallplate sold separtely. Not compatible with low voltage lighting or smart LEDs. Requires a compatible Z-Wave controller, sold separately.

Tech Specs

  • Part Number: ZWA037-A
  • Wireless Technology: Z-Wave
  • Z-Wave Plus: Yes
  • Series 700: Yes
  • Repeater: Yes
  • Beaming: Yes
  • Security Class: S2 auth, S2 unauth, Non-Secure
  • SmartStart: Yes
  • Input Voltage: 110/120 VAC 50/60Hz
  • Max Standby Power: 0.6W
  • Minimum Load: 5W with LED bulbs.
  • Neutral Required: Yes
  • Continuous Maximum Load:
    • 500W using incandescent / halogen.
    • 150W using LED bulbs (Trailing Edge) / dimmable CFL.
  • Power Type: Wired
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Operating Humidity: 8% to 80%
  • Operating Distance: 114 ft (35m) Indoor, 492 ft (150m) Outdoor
  • Product Dimensions: 4.13 x 1.8 x 1.57 inches (105 x 46 x 40 mm)
  • Product Weight: 0.33 lbs (150g)
