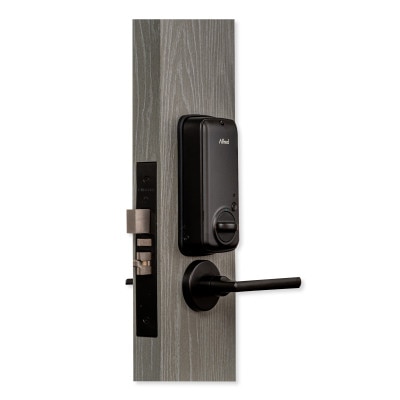

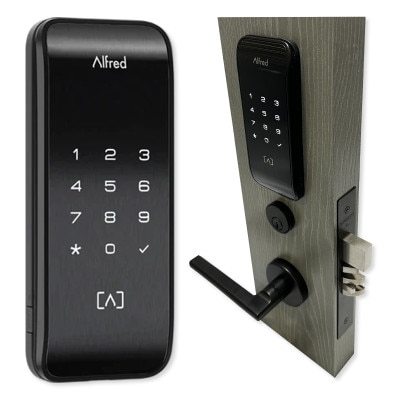

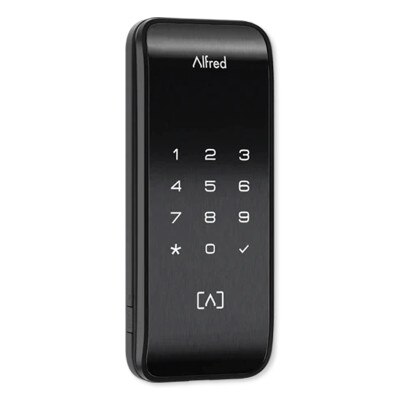

Alfred ML2 Smart Panel With Mortise Lockset, Lever, and Cylinder

$749.00
SKU: AFML2LBL

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Alfred ML2 Smart Panel with Mortise Lockset, Lever, and Cylinder will add better security and extra durability against an attempted forced entry at your home or office. With a sleek modern design and an attractive illuminated touchscreen keypad, this smart lock enhances the look of any door because it perfectly compliments the included lever and cylinder that come in a black finish. The ML2 Alfred smart lock provides access in 4 ways: Pin Code Entry, RFID Access Cards, smartphone via Bluetooth ekeys (Alfred Connect Wi-Fi Bridge required, sold separately), and Z-Wave/Zigbee technology (Z-Wave V2 or Zigbee 3.0 modules required, sold separately). This smart lock can store up to 250 PIN codes (4-10 digits in length) and 250 RFID Cards; plus, an unlimited amount of Bluetooth ekeys can be created via the free Bluetooth connected Alfred Home app using a smartphone (Android or iOS). The Alfred Home App allows for the creation, sharing, and deletion of PIN codes and Bluetooth eKeys, as well as adjusting device settings. A rechargeable lithium-Ion battery is also included for long-lasting use.

  • Touchscreen smart lock adds smart security features to most standard mortise locks (North American)
  • Comes with a mortise lockset, lever, and cylinder
  • Bluetooth operation standard with Alfred Home App
  • Assign up to 250 unique PIN codes including 1 single use and scheduled codes to control access to your home amongst family, friends, employees and more
  • Visual Pin Protection lets you add random numbers before or after your unique pin number and still operate the lock, making it difficult for someone to guess your code
  • Store up to 250 unique RFID Cards
  • Meets residential high-rise fire and emergency egress codes. (3HR Fire)
  • Auto relocking feature locks the deadbolt after 30 seconds
  • Voice prompts in 5 languages: English, French, Spanish, Portuguese and Mandarin
  • 12V/24V Hardwire support standard
  • Rechargeable Lithium-Ion battery included
  • Z-Wave, Zigbee and WiFi technologies (Z-Wave V2 or Zigbee 3.0 modules required, sold separately)

Why You Would Use This Product:

The Alfred ML2 Smart Panel with Mortise Lockset, Lever, and Cylinder, provides additional security and access control to your home or office building through its PIN codes, RFID Cards, or Bluetooth ekeys. If copying, sharing, and potentially losing physical keys is too much effort or a safety risk for your home, this smart lock ensures only trusted guests, family members, and employees can enter your property. It is perfect as either a stand alone smart security device or as another piece of a smart security network.

Alfred Home App

Access your Alfred deadbolt, share access, and adjust settings from the Alfred Home mobile application for iOS and Android. The Alfred Home app uses Bluetooth connections to wirelessly unlock your Alfred deadbolt, no PIN code required. An unlimited amount of Bluetooth ekeys can be created and shared. The mobile app also allows for the creation, sharing, and deletion of PIN codes and adjusting device settings. No smart home hub is required. Additional features (Remote lock/unlock, reviewing lock activity, and receiving alerts) require the Alfred Connect Wi-Fi Bridge (sold separately) and router.

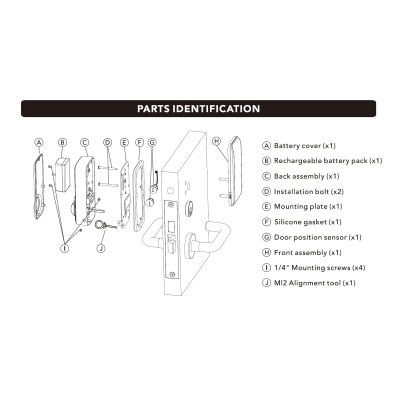

In The Box:

  • Exterior Keypad
  • Mortise Lockset
  • Cylinder
  • Lever
  • Battery Cover
  • Rechargeable Battery Pack
  • Back Assembly
  • (2) Installation Bolt
  • Mounting Plate
  • Silicone Gasket
  • Door Position Sensor
  • Front Assembly
  • 1/4" Mounting Screws
  • M12 Alignment Tool

Notes:

  • Z-Wave compatibility requires Alfred Z-Wave Plus Module for ML2 and DB2 Smart Locks and a Z-Wave controller (all sold separately).
  • Zigbee compatibility requires Alfred Zigbee 3.0 module and a Zigbee controller (all sold separately).
  • Requires Alfred Connect Wi-Fi Bridge (sold separately) and router for remote lock/unlock, reviewing lock activity, and receiving alerts, as well as Alexa and Google Home support.

Tech Specs

  • Part Number: ML2-L-BL
  • Finish: Black
  • Includes: Mortise Lockset with Lever and Cylinder in a black finish
  • RFID Reader: MIFARE 1, S50, S70, 13.56 mHz cards or fobs
  • Handed: Reversible left and right
  • Touch Keypad: Illuminated 12 button keypad
  • Pin Code Length: 4-10 Digits
  • Power Battery: Rechargeable Lithium-Ion battery included
  • Emergency Power Port: Yes – USB
  • Door Thickness: 40-50mm
  • Operating Temperature: -31 to 150°F (-35 C to 66°C)
  • Dimensions: 2.67 x 6.39 inches (68mm x 162mm)
  • Warranty: 2-Year Limited

Product Docs
