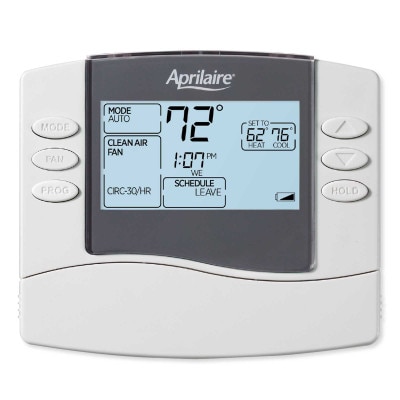

AprilAire 8466 Universal Programmable Thermostat
Product Description
The AprilAire 8466 Universal Programmable Thermostat is capable of controlling single stage, multi stage, and heat pump HVAC systems. This thermostat model includes a weekday/weekend programmable schedule, allowing users to preselect different temperature setpoints for each day of the week and weekend. This AprilAire thermostat includes the "progressive recovery" feature that ensures that scheduled temperature setpoints are reached before their set time, providing a comfortable indoor environment exactly when you wish.
- Universal thermostat compatible with most 2H/2C or 4H/2C heat pump HVAC systems

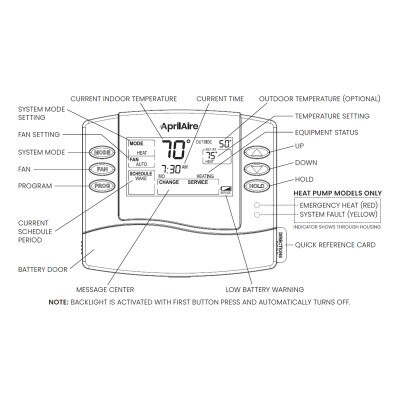

- 4.5" backlit digital display for easy reading of temperatures, alerts, and settings
- Displays room temperature, temperature set point, and optional outdoor temperature
- Circulation fan mode for air cleaning
- Separately programmable weekday/weekend schedules
- Easy to use temperature control can override program schedule at any time
- Two power options: AC hardwired or battery powered with front battery door access
- Display can indicate service alerts for a connected air filter, humidifier, dehumidifier, etc
- Progressive recovery: Allows the thermostat to activate the heating and cooling equipment prior to an event in order to reach the desired temperature at the start of the next scheduled event
Why You Would Use This Product:
The AprilAire 8466 Universal Programmable Thermostat is a widely compatible thermostat with plenty of standard and advanced features to support most HVAC systems. The progressive recovery feature ensures your indoor environment will be at the exact temperature at the exact time you have scheduled.
In The Box:
- Thermostat
- Mounting Hardware
NOTE: Professional installation recommended.
Tech Specs
- Part Number: 8466
- UPC: 686720846601
- Applicable HVAC Systems:
- Standard systems gas, oil, electric
- Single stage/heat pump/multi-stage
- Millivolt systems
Thermal
- Control Range: 45° to 99°F (7° to 32°C)
- Display Range: 32° to 99°F (0° to 40°C)
- Accuracy: ± 1°F (± 0.5°C)
- Storage Temperature: -30° to 140°F (-34.4° to 60°C)
- Operating Humidity: 5% to 90% relative humidity
- Operating Ambient Temperature: 32° to 120°F (0° to 48.9°C)
- Shipping Temperature Range: 30° to 140°F (-34.4° to 60°C)
- Electrical:
- 24 VAC (18-30 VAC)
- 1 amp maximum load per terminal
- 2.5 amp total maximum load (all terminals)
- AC Power: 18-30 Volt AC
- Dimensions: 5.25 H x 4.50 W x 1.00 D inches
- Approvals: FCC, IC
- Warranty: 5-Year Limited
