Arlington 8x10 TV BOX for Power & Low-Voltage


This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

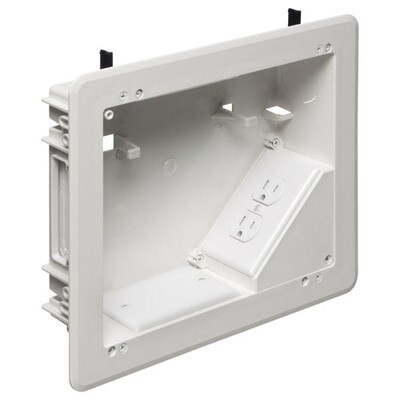

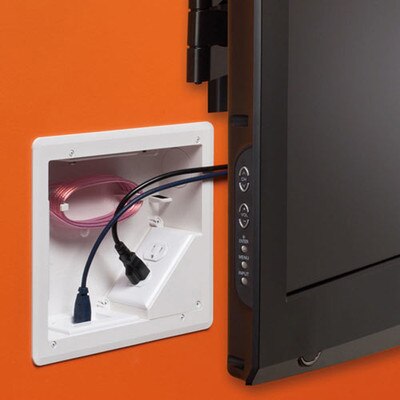

Arlington's TVBU810 delivers the ultimate in versatility for installing wall-mounted TVs in new or retrofit projects. You can install it horizontally or vertically to ensure proper positioning of low voltage connections behind the TV.

  • Accepts standard-style plates with receptacles and decorator-style devices with plates – and Arlington's SCOOP series entrance plates and hoods.
  • Ideal for home theater systems where multiple connections are needed for sound systems, satellite TV, cable TV, DVRs, and more.

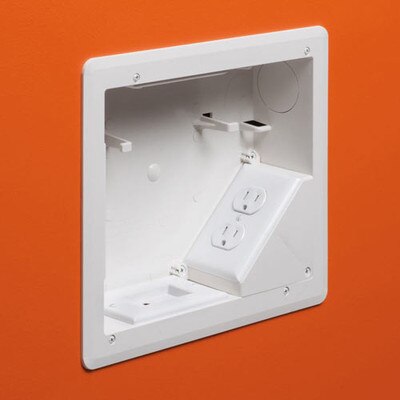

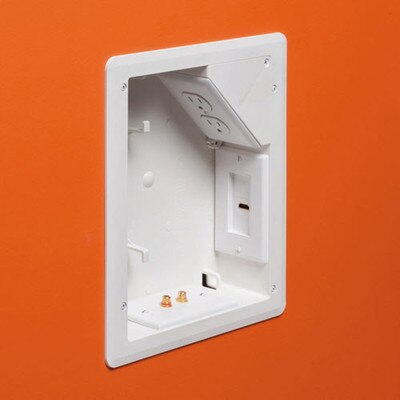

  • Box can be installed horizontally or vertically.
  • Mounting wing screws hold box secure against wall.
  • Supplied with cover blanks, wall plate, cable entry device (CED130) and cable connectors for unused openings.

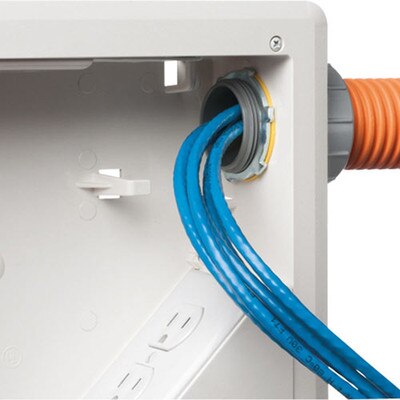

  • 1-1/2" knockout for ENT or other low voltage wiring.
  • For new or retrofit work.
  • CULUS Listed.

In The Box:

  • 8" x 10" TV Box (TVBU810)
  • Line-Voltage Box
  • Duplex Receptacle
  • Duplex Wall Plate
  • 3 x Cover Blanks
  • SCOOP Cable Entry Device (CED130)
  • Hole Plug
  • Cable Connector
  • Removable Frame
  • Mounting Screws

Tech Specs

  • Part Number: TVBU810
  • Color: White
  • Material: Paintable Plastic
  • Style: 8" x 10" TV Box with Angled Power Box
  • Trade Size: 8" x 10"
  • ENT Cable Size: 1-1/2"
  • Knockout Size: 1/2" (Power)
  • Dimensions: 10.656(H) x 12.531(W) inches
  • Listings: UL/CSA

Product Docs
