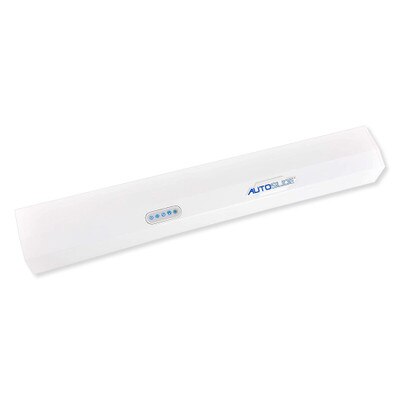

Autoslide Elite iLock Sliding Door Starter Kit

$1,045.00
SKU: ASE0xxCE

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

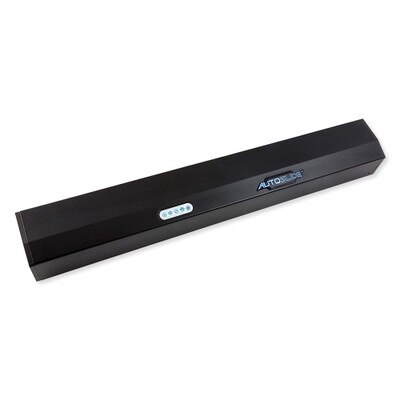

The Autoslide Elite iLock Automatic Patio Door System has the extra power you need to automate your large and heavy sliding doors. This system also has the Autoslide iLock feature, which provides security through an electronic automatic lock. It provides easy access for anyone carrying an armful of goods or entertainment supplies in and out of your home. The black color of the Autoslide provides a more modern look for those with a more contemporary style in mind, while the white color allows for custom painting to match your door frame.

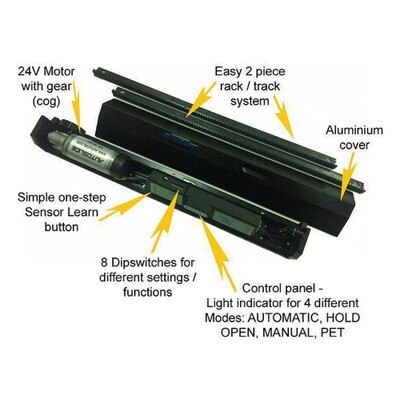

The Autoslide Elite iLock System was designed to automate heavy patio sliding doors such as the impact doors found in Florida. The system consists of an electric motor with automatic locking technology, an electronic controller, and a low-voltage DC power supply encased in an aluminum slim line housing. Your door is activated by the specially designed wall-mounted wireless push-buttons that are installed on both sides of the opening. A large variety of other activation devices, such as infrared motion sensors, are available at an extra cost.

In The Box:

  • One AutoSlide drive system with Elite iLock Motor
  • One Aluminium cover

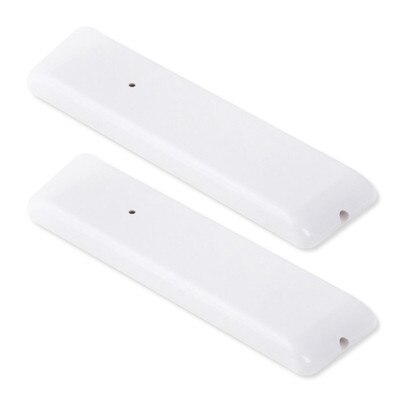

  • Two Wall Mounted Wireless Push Buttons
  • One Low voltage plug-in power pack
  • Two 20" racks with assembly kit
  • Friction Tester
  • Installation screws and Allen key
  • Instruction booklet & Installation DVD

Tech Specs

  • Part Number:
    • Black: ASE01BCE
    • White: ASE02WCE
  • UPC:
    • Black: 647923341379
    • White: 647923341386
  • Maximum Drag Weight: 35 lb.
  • Maximum Door Width: 38 inches with included tracks (additional width possible with the purchase of Extension Rack)
  • Power Supply: 110-240 VAC, 24 VDC Power Pack
  • Safety Cut Off: Yes
  • Automatic to Manual Mode: Yes
  • Weight: 6 lbs.
  • Dimensions (L x H x W): 19in x 2.75in x 2.5in (490mm x 70mm x 65mm)
  • Warranty: 2 Year

Product Docs
