Autoslide MultiDrive 8' Sliding Door System

The MultiDrive system by Autoslide is the most technologically advanced automatic sliding door system available. This system can open single-panel doors as well as multi-panel doors, including bi-parting, telescoping, and pocket sliding doors. The door is then activated by specially designed wireless push buttons installed on both sides of the opening. Optional motion sensors and other activation devices are available as well.

Application:

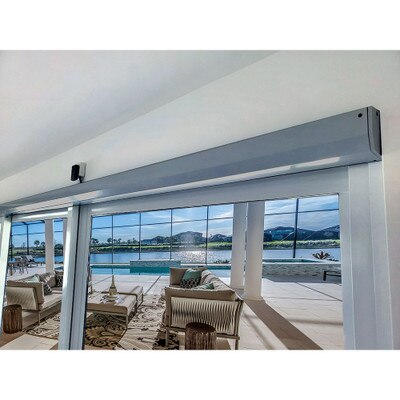

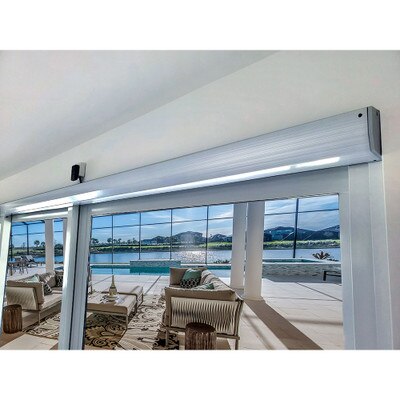

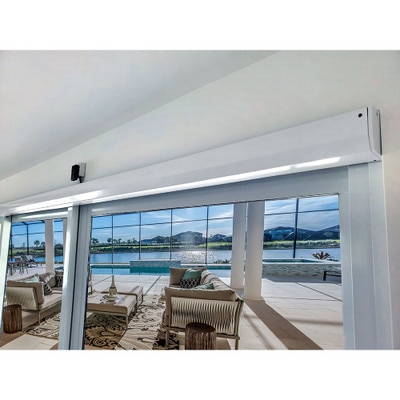

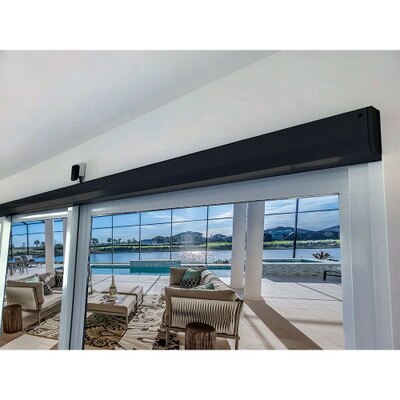

The MultiDrive can be installed on any existing or new sliding doors, in both internal or external settings. The system consists of a motor drive belt system and electronic controller encased in an aluminium slim line housing. The Autoslide MultiDrive can be easily installed on wooden, glass, aluminium and PVC frames.

The Multidrive's status LEDs identify the current mode the Autoslide system is in with 4 different color lights:

• Automatic Mode (green light): The door will open when triggered and close after the preset dwell time has elapsed.
• Hold Open/Toggle Mode (blue light): The door will open and remain open until another mode is selected.
• Secure Mode (red light): The door can be manually operated, the AutoSlide will not drive the door.
• Pet Mode (orange light): For use with AutoSlide pet sensors and when a pet opening width has been set. Will open the door to the pet opening width when any AutoSlide pet sensor is triggered and close after the preset dwell time has elapsed.

Much of the functionality inside the MultiDrive is controlled by a set of eight dip switches:

• Direction/Learn: Used to program the width for people to pass through and to set the MultiDrive to work for a left-handed or right-handed door.
• Slam Shut: When activated, this setting will give an extra power boost during opening and closing of the door. Designed for tight jambs and heavy weather seals.
• Pet Learn: This switch is used to program the desired pet width. The MultiDrive must be in this mode for your pet sensors to function.
• Secure Pet Mode: The direction of this dip switch will determine how the Hold Open/ Toggle Mode operates on the MultiDrive system. If it is in the 'Off' position, the door(s) will open and stay open until the mode is changed from Blue Mode to another. If it is in the 'On' position, the system will act as a toggle mode where you activate to open the door and then activate to close the door. You also use the 'On' position when opening multi-panel sliding door systems for a full open.
• 25% Less Power: Reduces the power the motor uses to prevent your doors from moving too fast.
• App Pairing: Turn on this dip switch to pair your MultiDrive's Bluetooth module to your smartphone or tablet using the Autoslide app.
• Extra Power: This mode allows you to increase the amount of power the system uses while it opens and closes your doors. It is useful on heavier doors and multi-panel sliding door systems.
• Beep: When activated, this will cause the MultiDrive to emit an audible beep when the door opens and when it starts to close.

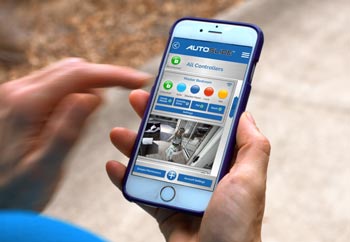

Control your MultiDrive system from your smartphone or tablet with the Autoslide app or through your existing Bluetooth compatible smart home or access control system. You change the Multidrive's active mode, adjust settings, and use voice commands via Siriwhen within Bluetooth operating range (approximately 100 ft).

A MultiDrive enabled door can also be remotely accessed when you're not home with the Autoslide app and Autoplus Gateway, sold separately. The Autoplus Gateway monitors for wireless communications between Autoslide controllers or sensors and a MultiDrive unit and notifies you when a device is activated. The Autoslide app and AutoPlus Gateway also enables voice control capabilities with Amazon Alexa.

Use one of the three dry-contact ports to create a scene within your home automation system and control the MultiDrive from anywhere in the world.

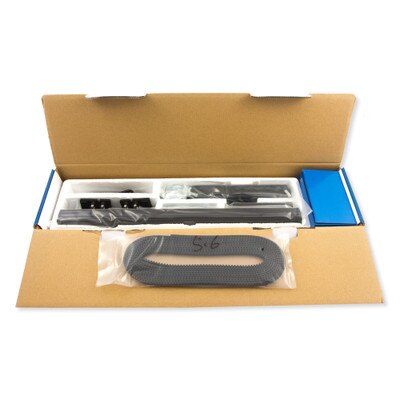

In The Box:

• Autoslide Multidrive System with Cover
• Heavy Duty Motor with Automatic Lock
• 2 x Keyfob Remotes
• Bluetooth Module
• AC Adapter
• Mode pad
• Installation Brackets and Clips
• Installation screws and tool packet
• 2 x Wall mounted wireless push buttons

NOTE: MultiSlide requires professional installation.
