Autoslide System Starter Kit
Product Description
The Autoslide Automatic Sliding Door System is a compact automatic door system designed to automate sliding doors. AutoSlide attaches to residential sliding patio doors, pocket doors, and barn doors. An Autoslide enabled door is activated by wall-mounted wireless push-buttons that are installed on both sides of the opening, but alternative activation options, such as motion sensors, are available at an additional cost.

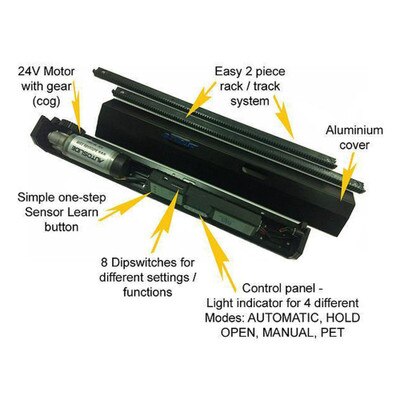

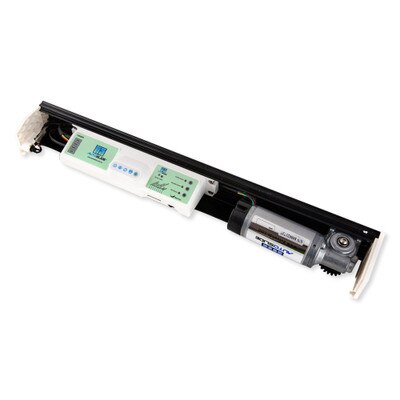

The system consists of a motor device with an electronic controller, two toothed tracks, and a low voltage DC power supply that plugs into your nearby standard outlet. It comes with two wireless wall-mounted buttons for your convenience and can be controlled via Alexa using a compatible third-party momentary relay.
This standard AutoSlide system will move a panel that has up to 12 pounds of drag force, which is the force required to push and pull the door back and forth. This measurement can be tested using a digital fish scale or luggage scale.
In The Box:

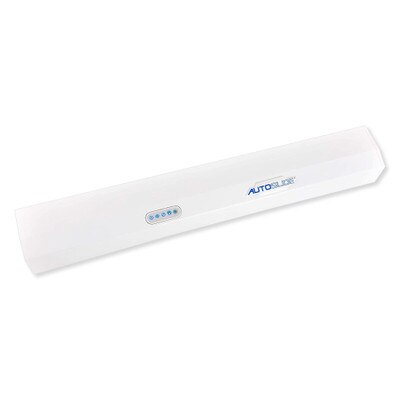

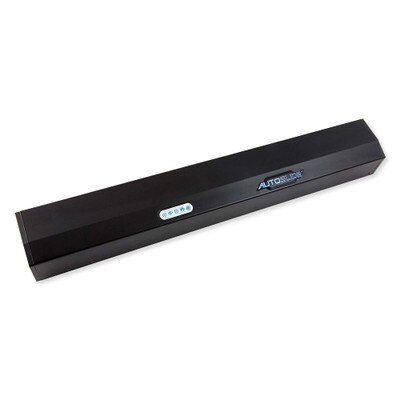

- AutoSlide drive system with cover

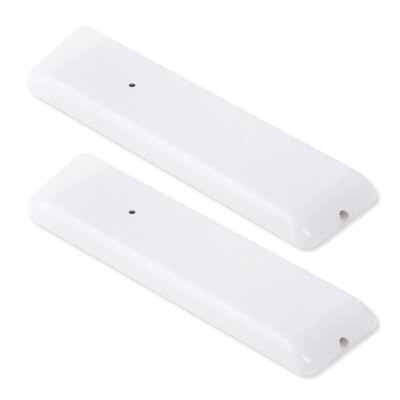

- 2 x Wall Mounted Wireless Push Buttons
- 2 x 20" tracks with assembly kit
- Low voltage plug-in power supply
- Friction Tester
- Installation screws and tool packet
- Instruction booklet
NOTE: Common household installation tools and a powered drill are required for installation.
Tech Specs
- Part Number:
- Black: AS01BC
- White: AS02WC
- UPC:
- Black: 859807002003
- White: 859807002010
- Maximum Drag Weight: 12 lbs.
- Maximum Door Width: 38 inches with included tracks (additional width possible with purchase of Extension Tracks)
- Power Supply: 110-240 VAC, 24 VDC Power Pack
- Safety Cut Off: Yes
- Automatic Lock: Yes
- Weight: 8 lbs.
- Dimensions (L x H x W): 19in x 2.75in x 2.5in (490mm x 70mm x 65mm)
- Warranty: 2 Year
