DataComm Connected Media Box without Power

$64.95
SKU: DT4580171

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

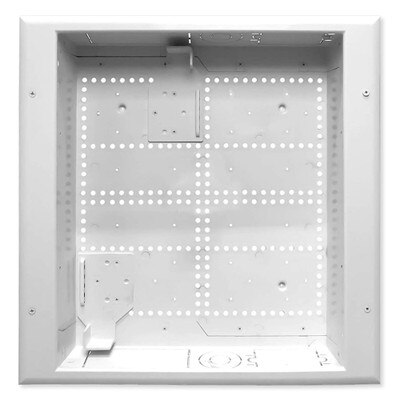

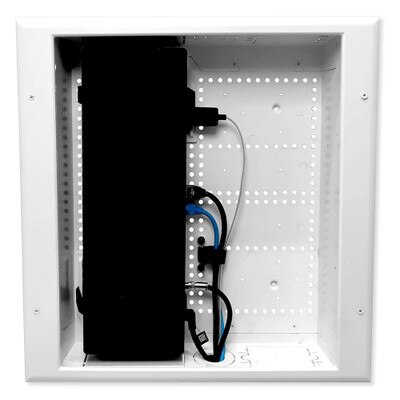

The DataComm Connected Media Box without Power allows you to hide large power sources like the Samsung One Connect Box behind your Samsung UHD TV. With the ability to add power solutions to this box you can give your TV the wireless look you want.

  • Mounting brackets included to securely hold the One Connect Box or other TV power sources
  • Two 18-inch hook and loop fasteners included to strap the power source firmly to brackets
  • Two large knockouts to allow access to USB ports
  • Multiple knockouts for conduit up to 2-inch diameter
  • Includes knockouts for a single gang J-Box power module
  • Standard 1 x 6-inch hole pattern
  • Can be mounted to the front or inside of studs
  • Flush with the wall
  • Open trim ring to allow airflow

In The Box:

  • DataComm Connected Media Box without Power
  • Trim Ring
  • (2) Power Supply Mounting Brackets
  • (2) 20-inch Hook and Loop Fasteners
  • Installation Guide

Tech Specs

  • Part Number: 45-8017-1
  • UPC: 660559016695
  • Material: UL Rated ABS Plastic
  • Dimensions:
    • With Trim: 17.50(W) x 18(H) inches
    • Without Trim: 14.26(W) x 17.8(H) inches
  • Certifications: UL 2416 (Audio/Video, Information and Communication Technology Equipment Cabinet, Enclosure And Rack Systems)
