  • DataComm Connected Media Box with Duplex Surge Receptacle, 15A/125V

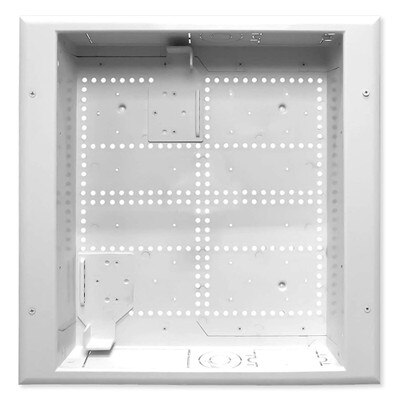

DataComm Connected Media Box with Duplex Surge Receptacle, 15A/125V

$109.95
SKU: DT4580211S

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

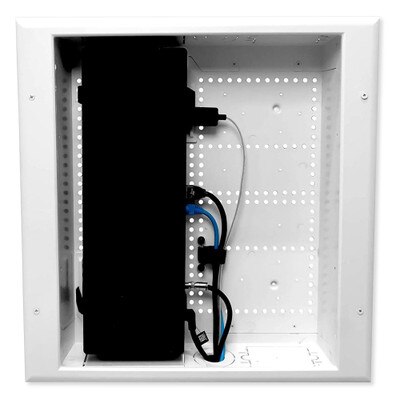

The DataComm Connected Media Box with 15A/125V Duplex Surge Receptacle allows you to hide large power sources like the Samsung One Connect Box behind your Samsung UHD TV. With the ability to add power solutions to this box you can give your TV the wireless look you want.

  • Mounting brackets included to securely hold the One Connect Box or other TV power sources
  • Two 18-inch hook and loop fasteners included to strap the power source firmly to brackets
  • Two large knockouts to allow access to USB ports
  • Multiple knockouts for conduit up to 2-inch diameter
  • Includes knockouts for a single gang J-Box power module
  • Standard 1 x 6-inch hole pattern
  • Can be mounted to the front or inside of studs
  • Flush with the wall
  • Open trim ring to allow airflow

Technical Features:

  • Maximum surge current – 15,000 amps
  • Clamping response time – 1 nanosecond
  • Hot/Neutral, Hot/Ground, Neutral/Ground
  • Total maximum surge dissipation – 480 joules

In The Box:

  • DataComm Connected Media Box with 15A/125V Duplex Surge Receptacle
  • Trim Ring
  • (2) Power Supply Mounting Brackets
  • (2) 20-inch Hook and Loop Fasteners
  • Installation Guide

Tech Specs

  • Part Number: 45-8021-1S
  • UPC: 660559016718
  • Material: UL Rated ABS Plastic
  • Volt Duplex Surge Receptacle: 15 Amp/125
  • Technical Features:
    • Maximum surge current – 15,000 amps
    • Clamping response time – 1 nanosecond
    • Hot/Neutral, Hot/Ground, Neutral/Ground
    • Total maximum surge dissipation – 480 joules
  • Dimensions:
    • With Trim: 17.50(W) x 18(H) inches
    • Without Trim: 14.26(W) x 17.8(H) inches
  • Certifications: UL 2416 (Audio/Video, Information, and Communication Technology Equipment Cabinet, Enclosure And Rack Systems)

Product Docs
