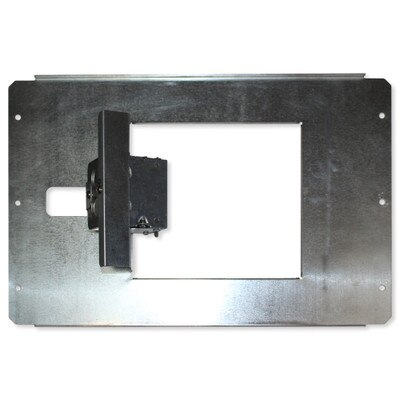

DataComm Full-Size Rough-In Bracket
Product Description
DataComm Electronics' Rough-In Brackets are designed for use in new construction applications. The Rough-In Bracket allows for pre-wiring with many of DataComm's cable plates for both residential (15A) and commercial (20A) installations.
- Sturdy 22GA galvanized steel construction
- Installs onto standard 16 inch on center metal or wood studs
- Built in mud ring for drywall
- 2-3/4" single-gang steel outlet box included
Use in conjunction with the Recessed Low Voltage Media Plate:
- with Duplex Receptacle, part #45-0031-WH
- with Duplex Surge Suppressor, part #45-0041-WH
- with 20 Amp Duplex Receptacle, part #45-0032-WH
-AND-
Use in conjunction with the Expandable Media Box:
- with Duplex Receptacle, part #45-0051-WH
- with 20 Amp Duplex Receptacle, part #45-0052-WH
- with Duplex Surge Suppressor, part #45-0062-WH
In The Box:
- 22GA Galvanized Steel Rough-In Bracket
- Steel Electrical Box
- 3/8" 10-32 Support Screw for Box Brace
Tech Specs
- Part Number: 45-0102
- Dimensions: 17.5 x 12 x 3.75 inches
Compatible Low Voltage Plates:
- Full-Size Plate with Duplex Receptacle (45-0031-WH)
- Full-Size Plate with 20A Duplex Receptacle (45-0032-WH)
- Full-Size Plate with Duplex Surge Suppressor (45-0032-WH)
Compatible Expandable Media Boxes:
- Box with Duplex Receptacle (45-0051-WH)
- Box with 20A Duplex Receptacle (45-0052-WH)
- Box with Duplex Surge Suppressor (45-0062-WH)
