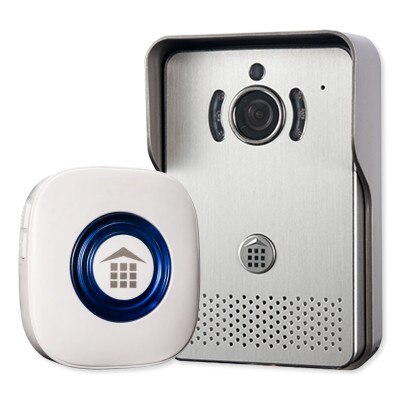

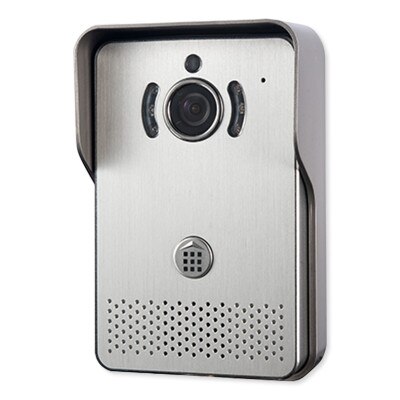

Doorbell Fon Station with Interface to DP28C

$313.73
SKU: ACDP68xNXG

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Doorbell Fon Station with Interface to DP28C features a built-in camera that provides clear 720p resolution so that you can monitor your entryway throughout the day or night and from a remote location. It comes with pet immune infrared sensor detection, Wi-Fi or LAN-based network connections, and a lock trigger that provides 12V to an electronic strike or maglock. It also features an SD Card input to allow you to record up to 64GB of surveillance footage, which you can review using the YooSee app (Android or iOS).

  • Door station with DP28C interface allows you to answer your door from a smartphone or a standard house phone
  • Wi-Fi or LAN-based network connections
  • Lock Trigger provides 12V to an electric strike or maglock
  • Exit input allows attachment to card readers and keypads
  • YooSee App (Android or IOS) allows communication and video monitoring

Why You Would Use This Product:

You no longer have to walk to your door to answer it when installing the Doorbell Fon Station with Interface to DP28C. This unit comes with an interface to the DoorBell Fon Main Controller that will allow a connection between the video intercom door station and a standard telephone. When your house phone rings, you'll be able to answer it and speak with whoever is visiting you at your front door. Additionally, when connected to the Yoosee app via your home's Wi-Fi network, you'll be able to answer your door using a smartphone or tablet as well as adjust security and alarm settings, record footage, and more.

In The Box:

  • Phone Door Station
  • Door Station Rain Cover

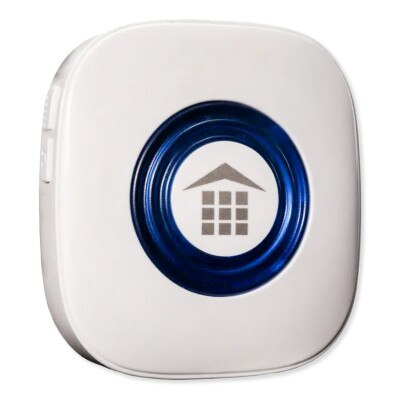

  • Wireless Chime 110V
  • Wireless Chime Battery

NOTE: Requires the DoorBell Fon Main Controller (part: DP28C, sold separately) in order to connect from the door station to a house phone.

Tech Specs

  • Part Number:

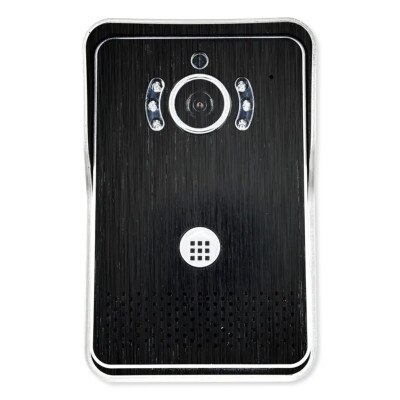

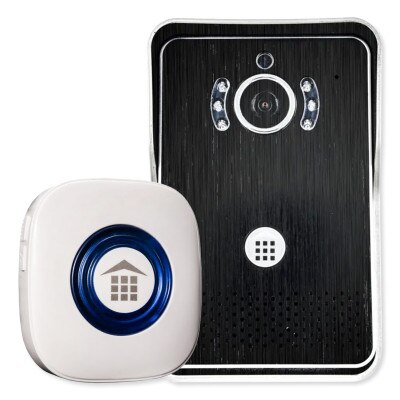

    • DP-68-BK NXG: Black Brushed Aluminum

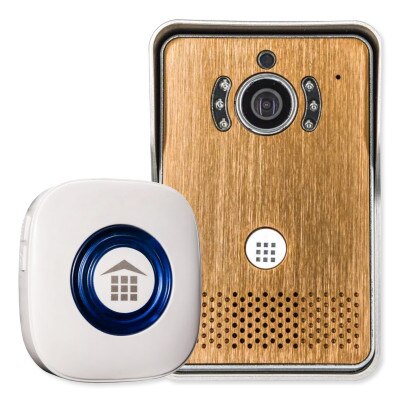

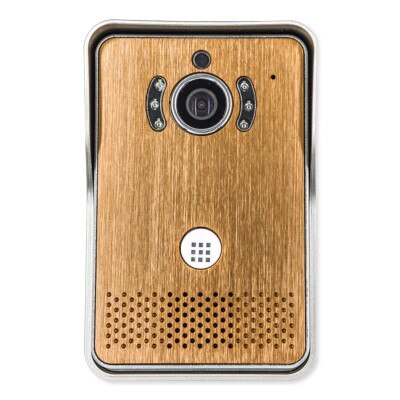

    • DP-68-BZ NXG: Bronzed Brushed Aluminum

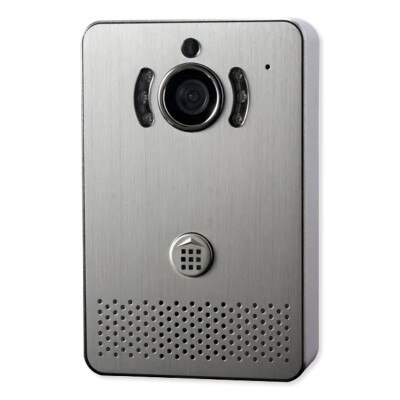

    • DP-68-S NXG: Silver Brushed Aluminum
  • Chipset: Hi 3518E
  • Wireless Indoor Bell:
    • 433MHz
    • Learning Code
    • Max distance: 100 feet
  • Storage: Up to 64GB SD Card
  • Video:
    • Resolution: 720p
    • Frame Rate: 1-25fps
    • Image Sensor: 1/4 CMOS
    • Visual Angle: 145° Superwide angle
    • Night Vision: 6pc LED
    • Lights, IR 3m, IR-Cut, No color change
  • Audio:
    • Full-duplex
    • G.711A
  • Alarm Motion Detection: PIR (Human body infrared sensor detection)
  • Network:
    • Protocols: TCP/IP, UDP, SMTP, DHCP, UPnP, P2P, ONVIF
    • Wi-Fi 802.11 b/g/n (range: 45 feet or WiFi extender for more)
    • 10Mbps/100Mbps Ethernet
  • Lock Control:
    • Wet Contact: 12V, 1.2A
    • 1 Exit/Egress input
  • Operating Humidity: 10-95%RH
  • Operating Temperature: -4°F to 131°F
  • Dimensions:
    • Outside (include base): 3.725(W) x 1.75(H) x 5.675(L)
    • Door station: 3.125(W) x 1.125(H) x 5.40(L)
  • Certifications: ISO, CE, FCC, RoHS
