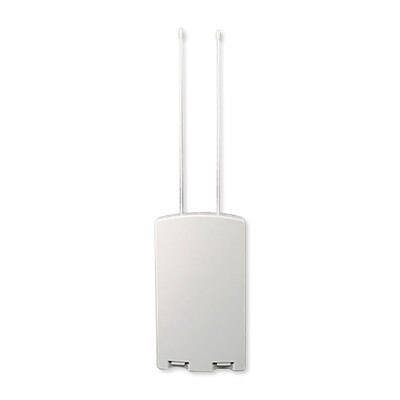

ELK M1 Wireless Receiver and Input Expander for 319.5MHz Sensors

The ELK-M1XRF319 is a Wireless (RF) Receiver and Input Expander for use with the ELK-M1 and ELK-M1EZ8 Controls. The receiver connects to the four (4) wire data (keypad) bus of the control and integrates in much the same way as an M1XIN hardware zone expander except that a single M1XRF can handle up to 144 wireless zones (e.g. transmitter sensors or points).

The M1XRF319 receiver is a dual (2) antenna, phase diversity design capable of long-range wireless coverage. It is compatible with ELK's 319 Series Wireless Sensors, as well as other 319.5MHz sensors (Interlogix format).

• Adds up to 144 individual wireless zones (sensors/points)
• Operates from the 4 wire RS485 Data Bus
• Additional Receivers (up to 9) may be connected to a single M1 or M1EZ8 Control for redundancy or greater coverage
• Flash Memory for Updating of operating Firmware

In The Box:

• M1 Wireless Receiver 319.5MHz One-Way Sensors
• Plastic Housing
• (2) Antenna
• (4) #6 Plastic Anchors
• (4) #6 Pan Head Sheet Metal Screws
• Instructions

Notes: Walls or metal may reduce the actual operating range. For compatibility with this Receiver, we recommend the M1 Control be operating firmware version 5.3.10 or higher and the ElkRP software be version 2.0.35 or higher.
