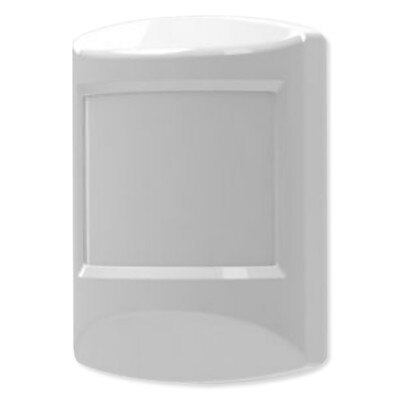

Ecolink Z-Wave Plus PIR Motion Detector, Pet Immune, Gen5

$39.00
SKU: ECPIRZWAVE25ECO

This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Ecolink Z-Wave Plus PIR Motion Detector, Pet Immune, Gen5 is meant for use with the Z-Wave Plus-enabled systems. It is a wall-mounted unit with wide-angle motion protection. When set to High Sensitivity Mode, the PIR has a maximum range of 30 ft. deep X 50 ft. wide. The PIR is able to ignore pets to 55 lbs.

  • Dual element sensor with 30 ft. by 50 ft. range
  • 33 or 55 lb. pet immune motion detection
  • 90-degree look down
  • 110deg. spread
  • Tamper protected
  • Fully supervised
  • Up to 5-year battery life on 1 CR123A lithium battery
  • 1-year warranty

In The Box:

  • Sensor
  • Sensor Mounting Bracket
  • (4) Screws
  • (2) Jumpers
  • Battery
  • (3) Pieces of Adhesive Tape

NOTE: The sensor must be added to a Z-Wave network prior to use. To include the sensor in a Z-Wave network, both the sensor and the network controller must be in inclusion mode at the same time.

Tech Specs

  • Part Number: PIRZWAVE2.5-ECO
  • UPC: 851166005114
  • Color: White
  • Technology: PIR (Passive Infrared)
  • Maximum Range: 30 ft. deep by 50 ft. wide
  • Operating Frequency: 908.42 MHz
  • Operating Range: Up to 100 feet (line of sight)
  • Pet Immune: Up to 55 lbs.
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Battery: 3V Lithium CR123A
  • Battery Life: up to 3 years, depending on use
  • Warranty: 1 Year

Product Docs
