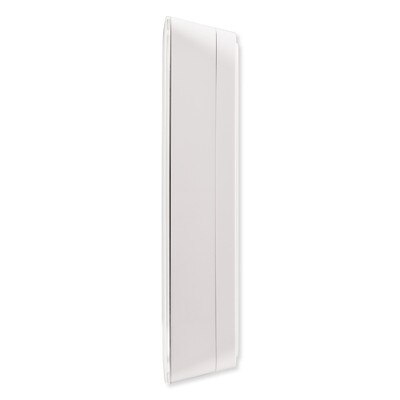

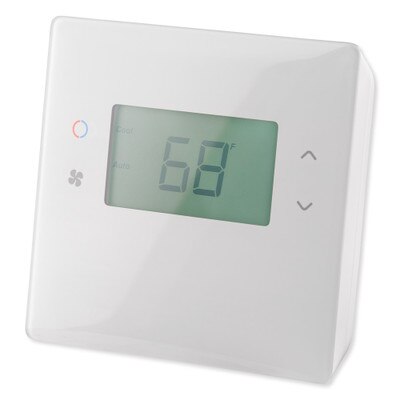

Ecolink Z-Wave Plus Smart Thermostat, Gen5


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The Ecolink Z-Wave Plus Smart Thermostat, Gen5 is a wireless Z-Wave® thermostat designed to control most HVAC systems including standard gas/electric type heat pump systems and supports both 24VAC and battery operation for home automation and pro security applications. The TBZ500 thermostat is a reliable and affordable solution that will allow your customers to easily control and manage their energy usage especially when remote monitoring is preferred.

  • Standard gas/electric HVAC Systems: 2-stage heating, 2-stage cooling
  • Heat Pump HVAC Systems: 3-stage heating, 2-stage cooling
  • Fan system: Selectable for gas or electric heat systems
  • Heat Pump Changeover valve (reversing valve): Selectable for change over with heat or change over with cool (O or B output)
  • Emergency Heat: In Heat pump mode, Emergency Heat mode is selectable from the thermostat
  • Compressor short cycle protection delay of 5 minutes (adjustable)
  • Backlit fixed 128 segment B/W LCD with 7-character Message Bar
  • Z-Wave Plus® Certified, S2 Security
  • Compatible Panels*
    • Honeywell Lynx Touch 5200/7000/Vista20p +
    • VAM/Vista 128BPT + Tuxedo Touch
    • Qolsys IQ/IQ2
    • 2GIG EDGE/GC3e/GC2e/GC3/GC2
    • Interlogix Simon XT/XTi5
    • Samsung SmartThings Hub

In The Box:

  • Z-Wave Thermostat

NOTE: 24V operation requires both 24VAC (R) and 24VAC common (C) wires from the HVAC System.

Tech Specs

  • Part Number:
    • White: TBZ500W
    • Black: TBZ500B
  • UPC:
    • TBZ500W (White): 8511660053296
    • TBZ500B (Black): 8511660053296
  • Flexible Power:
    • Battery: 24-month battery life with four (4) AA Alkaline batteries
    • Low Battery Indication
  • Powered: Hardwired 24VAC
  • Sensors:
    • Temperature/Humidity
    • Z-Wave® remote temperature sensor
  • Fan Control: Fan can be configured on and auto (controlled by HVAC)

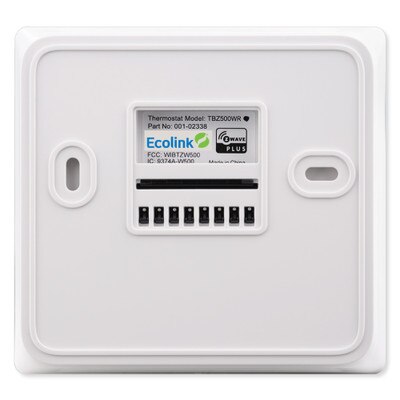

  • Wiring Requirements: Uses standard thermostat connections: (C, RC, RH, W1,W2/O, Y1, Y2, G) – 18 AWG
  • Compliance:
    • USA: FCC Compliant to CFR47, Part 15B
    • Canada: Industry Canada RSS 210, Issue 8
