FIBARO Bypass 2

$11.45
SKU: FBFGB002

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

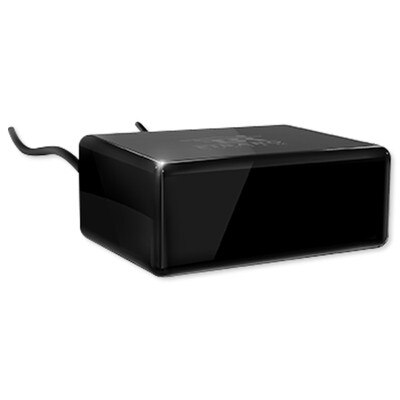

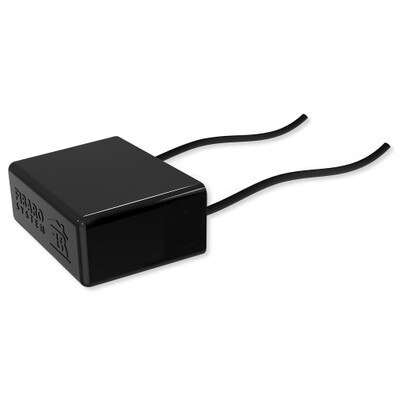

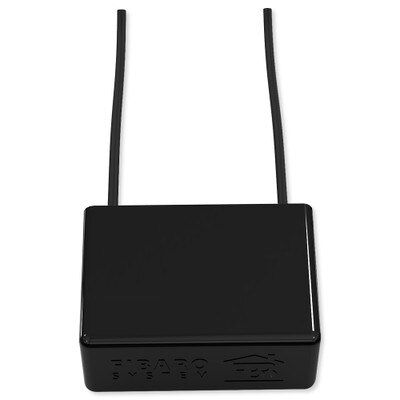

FIBARO Bypass 2 is a device complementary to FIBARO Dimmer 2. Its installation makes possible to dim light sources with minimum power consumption, such as e.g. single 0.5 Watt LED. Please note it is possible to dim only light sources clearly marked as dimmable.

  • Designed to work with FIBARO Dimmer 2 (FGD-212)
  • Reduces the minimum load required by FIBARO Dimmer 2
  • FIBARO Bypass 2 prevents LEDs from flickering and turned off compact fluorescent lamps from glowing.
  • In 2-wire connection FIBARO Bypass 2 reduces the minimum power of load required by the Dimmer for correct operation.

NOTE: Does not include required FIBARO Dimmer 2 (FGD-212).

Tech Specs

  • Part Number: FGB-002
  • Power Source: 100-240V~ 50/60Hz
  • Operating Temperature: 0° to 95°F (-17° to 35°C)
  • Power Consumption:< 1.4W
  • Installation: To be mounted in standard wall switch boxes 50 mm
  • Outside Dimensions: 1.22(L) x 0.85(W) x 0.51(H) inches
  • Approvals: RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC
  • Warranty: 12 months for business / 24 months for individual customer
