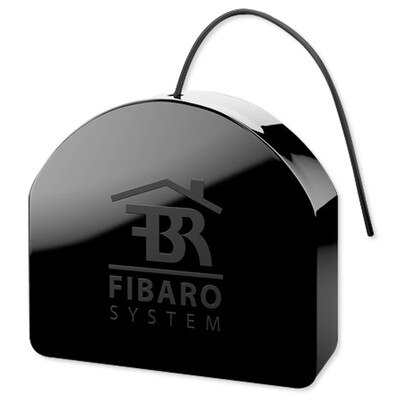

FIBARO Z-Wave Plus Dimmer 2, Gen5


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Dimmer 2 is a new, improved universal dimming module. The device allows remote control over any source of light. It significantly extends the lifespan of the bulbs and reduces the electricity use.

  • Fully compatible with Z-Wave Plus protocol
  • Installation is possible in buildings with both 2 and 3 wire systems
  • Advanced microprocessor control
  • Implemented algorithm of smart light source detection
  • Recognizes the type of the light source and automatically calibrates itself
  • Number of security features protect the device from overheating, overload or voltage drop
  • May turn switch buttons into a scene trigger
  • Connected light source emits non glaring light, when turned on during the night
  • Built-in RGB LED informs about progress of the installation and helps to perform the range test.
  • Active power and energy metering functionality
  • Soft start function
  • Memory of the last lighting level settings
  • Works with various types of switches — momentary, toggle, three-way, etc.
  • Active Element: semiconductor electronic switch
  • To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
  • FGD-212 is an extension unit

Radio controlled light dimming module, designed to work with various types of light sources. May be connected to two-wire or three-wire configuration. FIBARO Dimmer can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. New FIBARO Dimmer is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It features automatic overload protection switch-off and soft start function. In case of non-dimmable light sources only on/off function may be possible (in 3-wire connection).

As a dimmer, works with:

  • 230V operated conventional incandescent and halogen light sources
  • 12V operated ELV halogen lamps (with electronic transformers)
  • 12V operated MLV halogen lamps (with ferromagnetic transformers)
  • Dimmable LED lamps
  • Dimmable compact fluorescent CFL tube lamps
  • Using Bypass FGB-002 with any dimmable light source up to 225VA in 2-wire connection (depending on the type of load)

As a switch, works with:

  • Compact fluorescent lamps
  • LED lamps
  • Using Bypass FGB-002 with any any compatible light source up to 225VA (depending on the type of load)

NOTE: Requires a Z-Wave hub or controller.

Tech Specs

  • Part Number: FGD-212
  • Wireless Technology: Z-Wave Plus
  • Radio Frequency: 908.4 MHz (U.S.)
  • Radio Signal Power: up to 1mW
  • Wireless Range: Up to 165 feet (50 m) outdoors, or up to 100 feet (30 m) indoors (depending on terrain / building structure)
  • Power Source: 120VAC 60 Hz
  • Power Consumption:< 1.3W
  • Device Control:
    • Remotely: Z-Wave radio waves
    • Directly: External switch
  • Max. Load Rating:
    • Resistive loads (conventional incandescent and halogen): 25-125W
    • Resistive-capacitive loads (fluorescent tube lamp – compact / with electronic ballast, electronic transformer, LED): 25-100VA
    • Resistive-inductive loads (ferromagnetic transformers): 25-110VA
  • Active Element: Semiconductor electronic switch
  • Operational Temperature: 32° to 95°F (0° to 35°C)
  • Operational Current: 0.25-1.1A
  • Device Temperature Protection: 221°F (105°C)
  • Overcurrent Protection: Required external 10A circuit breaker, all circuits wired as Class 1 or Electric Light and Power circuit
  • For Installation in Boxes: Ø ≥ 2 inches (Ø ≥ 50mm)
  • Dimensions: 1.67(L) x 1.5(W) x 0.8(H) inches (42.5 x 38.25 x 20.3 mm)
  • Warranty: 12 Months
