FIBARO Z-Wave Double Switch 2

$49.99
Item # FBFGS223ZW5

IN STOCK! Order before 2 p.m. Pacific Time and we'll ship it today!

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

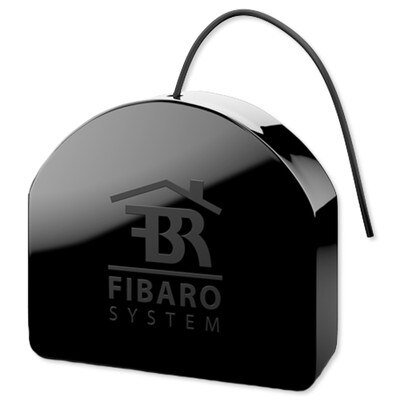

Add Z-Wave control to nearly any electric device by wiring in the FIBARO Double Switch 2. The Double Switch 2 is built to wire into your existing wall switch or electrical box to provide remote On/Off commands using Z-Wave, as well as monitor the connected device's energy usage. The small size of the device allows it to fit into most wall switch boxes or housings. You can control the Double Switch 2 with a wall switch or remotely via Z-Wave.

  • Supports control over two electric wired devices
  • Works with various types of wall switches
  • Advanced microprocessor control
  • Reports energy usage of connected devices
  • Built-in overheating, overload, and voltage protection
  • Compatible with any Z-Wave or Z-Wave + Controller

In The Box:

  • Double Switch 2

NOTE: Requires a Z-Wave hub or controller.

  • Part Number: FGS-223 ZW5 US
  • Power Supply: 100-240V – 50/60 Hz
  • Rated load current: IEC standards: 8A UL standards (resistive load): 6.5A UL standards (incandescent load): 5A
  • Operating temperature: 32- 95 °F
  • For installation in boxes: Ø ≥ 1.97 in, depth ≥ 2.36 in
  • Overcurrent protection: Required external 10A circuit breaker
  • Radio protocol: Z-Wave Plus (500 series chip)
  • Radio signal power: up to 1mW Radio frequency: 908.4, 908.42 or 916.0 MHz US;
  • Range: 164 ft outdoors; up to 131 ft indoors (Depending on terrain and building structure)
  • Dimensions (LxWxH): 1.67 x 1.5 x 0.8 in
