KBSound Auxiliary Amplifier

$109.99
SKU: ES13204

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

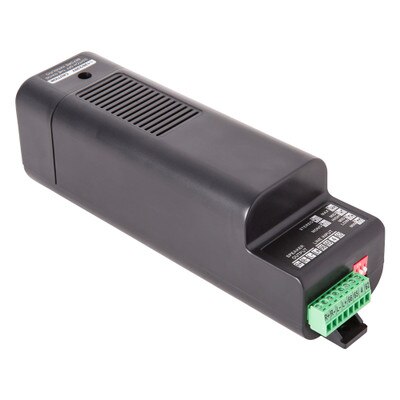

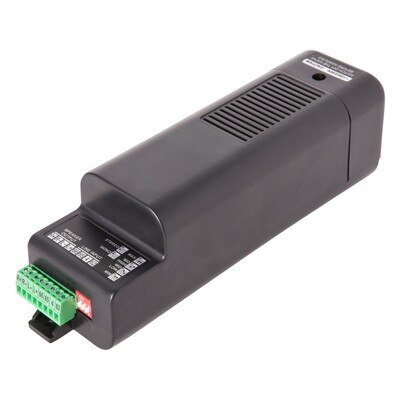

The KBSOUND Auxiliary Amplifier expands your KBSOUND STAR audio system by adding connections to include more speakers into your home audio system. A single amplifier supports a pair of speakers to be included into the audio system. Up to four Auxiliary Amplifiers may be connected to a single master module.

Features:

  • Supports an additional pair of speakers to be added into a KBSOUND STAR system
  • Up to four Auxiliary Amplifiers may be added into a single KBSOUND STAR system
  • Select where you want your audio played: from select auxiliary speakers or the entire system
  • Control your KBSOUND STAR system using the KBSOUND App or Remote Control accessory

Note: Bluetooth commands are accepted by the KBSOUND STAR Receiver. A Bluetooth controller must be within range of the Receiver in order to deliver commands.

Tech Specs

  • Part Number: 13204
  • UPC: 8436031617610
  • Dimensions: 200 W x 53 H x 56 D mm
  • Voltage: 85 to 264 VAC
  • Frequency: 47 to 63 Hz
  • Consumption Demand: 10 to 60W terminals F,N
  • Input Signal: 0 to 30 Vrms
  • Output Signal:
    • 2.5W terminals L, R (16 ohms)
    • 5W terminals L, R (8 ohms)
    • 10W terminals L, R (4 ohms)
  • Passband: 20 to 22000 Hz
  • Distortion: 0.3 percent
  • Crosstalk: 68 to 85 dB
  • Warranty: 2-Year

Product Docs
