KBSound STAR Space Bluetooth Amplifier
Product Description
The KBSound STAR Space Bluetooth Amplifier delivers expandable wireless audio solutions, allowing you to freely choose how and where to send audio to connected speakers and additional amplifiers. The Space Bluetooth Amplifier acts as the master station for your KBSOUND STAR Bluetooth audio system, connecting to speakers or Auxiliary Amplifiers via line output to stream audio sources across your home or business.
Features:
- Stream music from various Bluetooth connected devices including iOS or Android smartphones, tablets, or computers
- Line output connections support up to four Auxiliary Amplifiers to deliver audio to four zones
- Master and Auxiliary Amplifiers can be turned on jointly or separately
- Command STAR system using a Remote Control accessory or the KBSOUND STAR App
- Password and ID protection for first time pairing prevents unauthorized Bluetooth connections

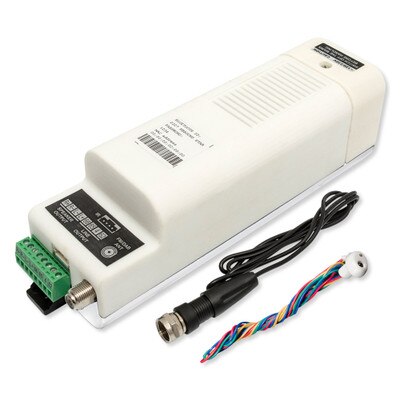

In The Box:
- STAR Space Electronic Module (Master) with Bluetooth receiver, FM tuner, Power Supply and Audio Amplifier
- IR bi-directional receiver / transmitter
- Coaxial RF connector and antenna cable for FM radio
NOTE: A bluetooth controller must be within range of the Receiver in order to deliver commands.
Tech Specs
- Part Number: 50896
- UPC: 8436031618136
- Dimensions: 200 W x 53 H x 56 D mm
- Frequency: 47 to 63 Hz
- Auxiliary Amplifier Switch On Signal: 12 to 14 VDC; 220mA
- Auxiliary Amplifier Output Signal: 0 to 3.5 Vrms
- Bluetooth Specifications: Class2 BT 4.2 Dual Mode BLE; A2DP 1.3, AVRCP 1.6
- Bluetooth Range: 10 m (32 feet)
- FM Frequency Range: 87.5 to 108 MHz
- FM Antenna Impedance: 75 Ohms
- FM Tuner Distortion: 0.1 to 0.5%
- Antenna Sensitivity: 1.7 to 3.5 uV
- Wireless Transceiver: 2402 to 2480 MHz
- Tx Power: 2 to 5.53 dBm
- RF Antenna: internal
- Voltage: 108 to 264 VAC
- Consumption Demand: 10 to 60W terminals F,N
- Input Signal: 0 to 3.5 Vrms
- Output Signal:
- 2.5W terminals L, R (16 ohms)
- 5W terminals L, R (8 ohms)
- 10W terminals L, R (4 ohms)
- Passband: 20 to 22000 Hz
- Distortion: 0.3%
- Crosstalk: 68 to 85 dB
- Warranty: 2-Year
