KBSound In-Wall PREMIUM Bluetooth Audio Receiver, US
Product Description

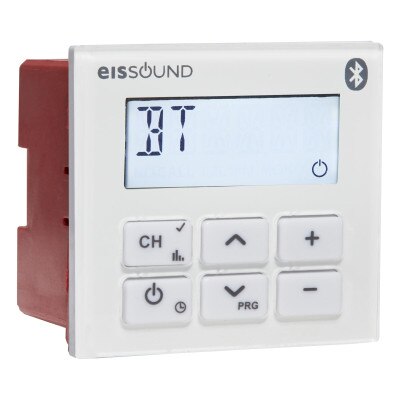

The KBSOUND In Wall PREMIUM Bluetooth Audio Receiver, (U.S.) delivers audio from Bluetooth devices, 4 wired local sources, and FM radio to either 2 stereo speakers or 4 mono speakers. It fits into European styled switches (45mm x 45mm) and has a Bluetooth range of 33 ft. Each PREMIUM Bluetooth Audio Receiver module has its own Bluetooth identification number and password to ensure stable and private connections between the receiver and your Bluetooth streaming device. This will allow you to listen to all of your favorite online music streaming stations, podcasts, and other online audio content.

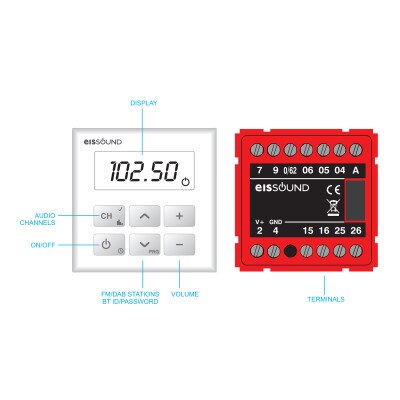

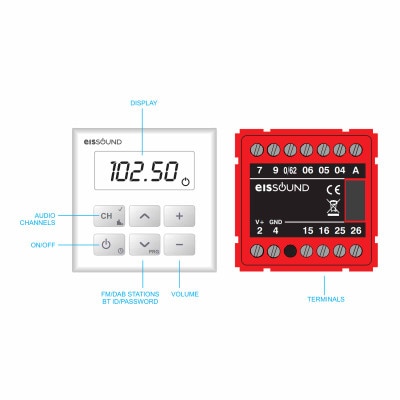

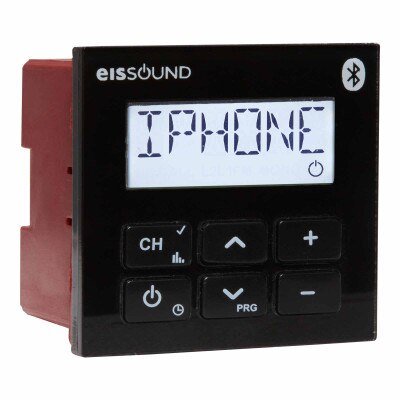

The KBSOUND PREMIUM In-Wall Bluetooth Audio Receiver features a digital display to identify the current audio source or radio station, volume level, and more. The audio input channel button allows you to cycle between connected audio sources. The Channel selection/Bluetooth ID buttons change FM radio stations when using the FM radio or input a password to pair a Bluetooth device to the receiver. Up to 10 FM radio stations can be saved at a time.
- In-Wall audio receiver sends audio from Bluetooth, FM, or local wired sources to up to 4 external speakers for audio streaming systems
- Connects to either two stereo or four mono audio channels
- Fits into European sized light switches (45x45mm)
- Pre-programmed keypad shortcuts provide additional functionality including saving preferred setting, easily connected Bluetooth devices, and more
- Bluetooth ID can be assigned to each module so that they can co-exist in the same installation

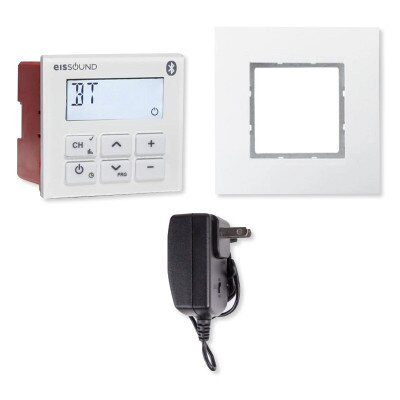

In The Box:
- PREMIUM Audio Receiver
- Power Supply
- Manual
NOTE: It's recommended that the rough in back box should be a one or two gang UN/CSA approved 18ci plastic junction box. Do not use metal back boxes which may interfere with the Bluetooth signal.
Tech Specs
- Part Number:
- 54159: Black
- 54109: White
- UPC:
- 54159: 8436031616842
- 54109: 8436031616873
- Speaker Impedance: 4/8/16 ohms
- Speaker Output: 5W stereo max.
- Other Connection: Volume limitation and mono/stereo jumpers
- LED Display:
- Off: Disconnected and Audio Off
- Bluetooth: Blue Flashing – searching BT Device
- Bluetooth: Blue On – BT connected
- Audio-In: Red On – Audio-In Activated
- Voltage Terminals VDC, GND:
- Normal: 15Vdc
- Min: 11Vdc
- Max: 15.5Vdc
- Consumption Demand:
- Min: 21mA
- Normal: 61mA
- Input Signal:
- Normal: 2.75 Vrms
- Prof: 1.22 Vrms
- Other: 0.32 Vrms
- Input Impedance:
- Normal: 33 Kohm
- Output Signal Output 8 ohm:
- Max: 1.5W
- Output Signal Output 16 ohm:
- Max: 1W
- Output Signal Line Terminals 05, 06, 04:
- Max: 1.29Vrms
- Output Signal AMP1 Terminals 05, 06, 04:
- Max: 2.59Vrms
- Output Signal AMP2 Terminals 05, 06, 04:
- Max: 1.82Vrms
- Amplifier Trigger Signal Terminal 05 (DC Component):
- Max: 5Vdc
- Amplifier Trigger Signal Terminals 0/62:
- Max: 14Vdc
- Amplifier Trigger Output Impedance:
- Max: 1.8 Kohms
- Calls Signal Terminal 7:
- Normal: 2.75 Vrms
- Passband:
- Minimum: 20Hz
- Maximum: 22,000Hz
- Distortion:
- Normal: 0.1%
- Max: 1%
- FM Frequency Range:
- Normal: 87.5 MHz
- Max: 108 MHz
- FM Antenna Impedance:
- Normal: 75 ohms
- Antenna Sensitivity:
- Normal: 3.5 uV
- Maximum: 10 uV
- Tuner Distortion:
- Max: 1%
- FM Favorites: 10
- Bluetooth Specifications:
- Class2 BT4.2 dual mode
- BLE, A2DP 1.3, AVRCP 1.6
- Wireless Transceiver: 2.4 GHz
- RF Power Transmitter: 2 dBm
- RF Antenna: Internal
- Dimensions:
- Exterior: 1.77 x 4.17 x 1.77 inches (45 x 106 x 45mm)
- Cavity: 1.77 x 1.77 x .41 inches (45 x 45 x 36mm)
- Face Cover: 1.30 x 2.60 inches (33 x 66mm)
- Range: 33 feet (10m)
