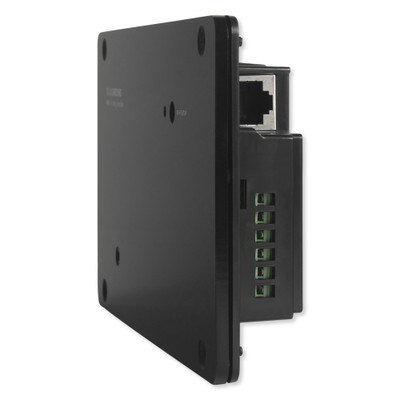

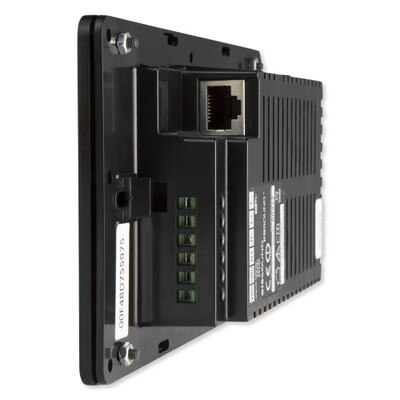

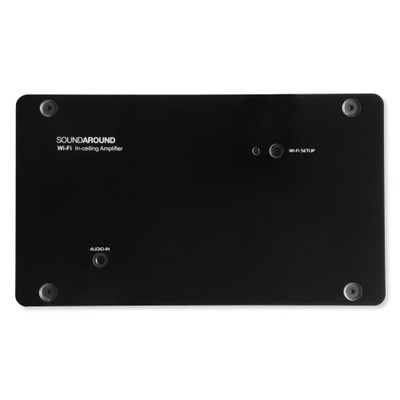

KBSound SOUNDAROUND Wi-Fi In-Ceiling Amplifier
Product Description
The KBSound SOUNDAROUND Wi-Fi In-Ceiling Amplifier delivers pristine audio to connected speakers from two audio sources: from streaming services or personal music libraries over Wi-Fi and from local Auxiliary Input. This Wi-Fi audio amplifier brings wireless audio to a single audio zone, along with the possibility to RE-STREAM connected audio sources to other rooms/zones/areas in your SOUNDAROUND system. Command the Amplifier using the Home Studio and AllPlay Jukebox Apps for iOS and Android devices respectively.
Features:
- Wi-Fi audio amplifier delivers audio to connected speakers via Wi-Fi or auxiliary input
- Stream music from personal libraries or various online services including Spotify, Napster, and more
- Play audio from connected speakers or in other audio zones of the SOUNDAROUND system
- Line output connections support up to two 25W speakers or four 8W speakers
- Command SOUNDAROUND system using the Home Studio and AllPlay Jukebox Apps for iOS and Android
In The Box:
- SOUNDAROUND WiFi Amplifier
- Power supply
Notes: Speakers sold separately. Controlling devices and Wi-Fi Amplifier must be on the same Wi-Fi network in order to operate.
Tech Specs
- Part Number: 60252
- UPC: 8436031618686
- Dimensions: 6.89 W x 3.93 H x 1.45 D inches (175 W x 100 H x 37 D mm)
- WiFi Transceiver: 2.4 GHz/ 5GHz
- WiFi Streaming: 24 bits/ 192 KHz
- WiFi Connection: WPS/Webpage
- WiFi Standards: 802.11a/b/g/n
- Ethernet/LAN: Yes
- RF Antenna: internal
- Voltage: 12 to 24 VDC
- Consumption: 60W
- Input Signal: 775 to 1000 Vrms
- Speaker Impedance: 16/8/4 ohms
- Speaker Audio Power:
- 12 VDC: 3.5W to 10W
- 15 VDC: 5.5W to 16W
- 24 VDC: 15W to 25W
- Speaker Power Consumption:
- 12 VDC: 14W to 30W
- 15 VDC: 18W to 45W
- 24 VDC: 44W to 60W
- Dynamic Range: 90 dB
- Left/Right Channel Separation: 75 dB
- Distortion: 0.1%
- Warranty: 2-Year
