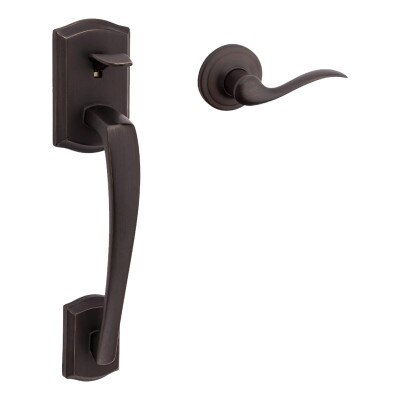

Kwikset Prescott Handleset with Tustin Lever

$143.04
SKU: KW815PTHXTNLxx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Kwikset Kwikset Prescott Handleset with Tustin Lever is part of the Kwikset Signature Series Collection. It is designed for exterior doors as a replacement for existing door knobs or handles, with an accompanying Tustin style lever for the interior side of the door. It fits most standard doors, and can be installed for left or right handed users.

  • Universal handing fits both right handed and left handed doors
  • For use on exterior doors where keyed entry and security is needed
  • Latch includes 3 interchangeable faceplates: round corner, square corner, and drive-in collar
  • Deadbolt and strike plate sold separately
  • Latch fits all standard door preparations using an adjustable backset 2-3/8" to 2-3/4"
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Why You Would Use This Product:

The Kwikset Prescott Handleset with Tustin Lever offers an alternative look to your door compared to your existing door handle/lever. The interchangeable faceplates add additional aesthetic options.

Bilt Offers Intuitive 3D Interactive Instructions for Installations and Repairs

The BILT app provides official 3D interactive instructions with voice, text, and animated guidance for thousands of products from partnered brands. BILT's expert designers create easy-to-follow multimedia instructions for end-users or installers to follow along for hassle-free installation or repair experiences.

  • Follow audio, text & animated images throughout install or repair process
  • Zoom & rotate images 360 degrees for complete visual references
  • Replay steps instantly
  • Leave ratings & reviews to improve future performance
  • Register your product & access warranties

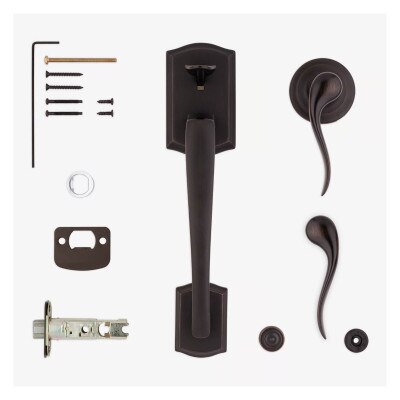

In The Box:

  • Kwikset Prescott Handle
  • Tustin Lever
  • Latch
  • Strike
  • Drive-In Collar
  • 3 x Faceplates
  • 6 x Screws
  • Allen Wrench
  • Manual

NOTE: Deadbolt and strike plate sold separately.

Tech Specs

  • Part Number:

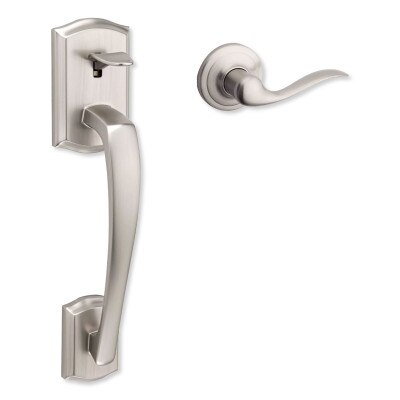

    • 815PTHXTNL 15: Satin Nickel
    • 815PTHXTNL 11P: Venetian Bronze
  • UPC:
    • 815PTHXTNL 15: 883351749800
    • 815PTHXTNL 11P: 883351749817
  • Door Specs:
    • 2-1/8" Face Bore
    • 1" Edge Bore
    • 2-3/8"or 2-3/4" Backset
  • Latch: Adjustable 2-3/8" to 2-3/4" fits all standard doors
  • Door Thickness: 1-3/8" to 1-3/4"
  • ANSI/BHMA: Grade 3
  • Warranty: Lifetime Mechanical & Finish
